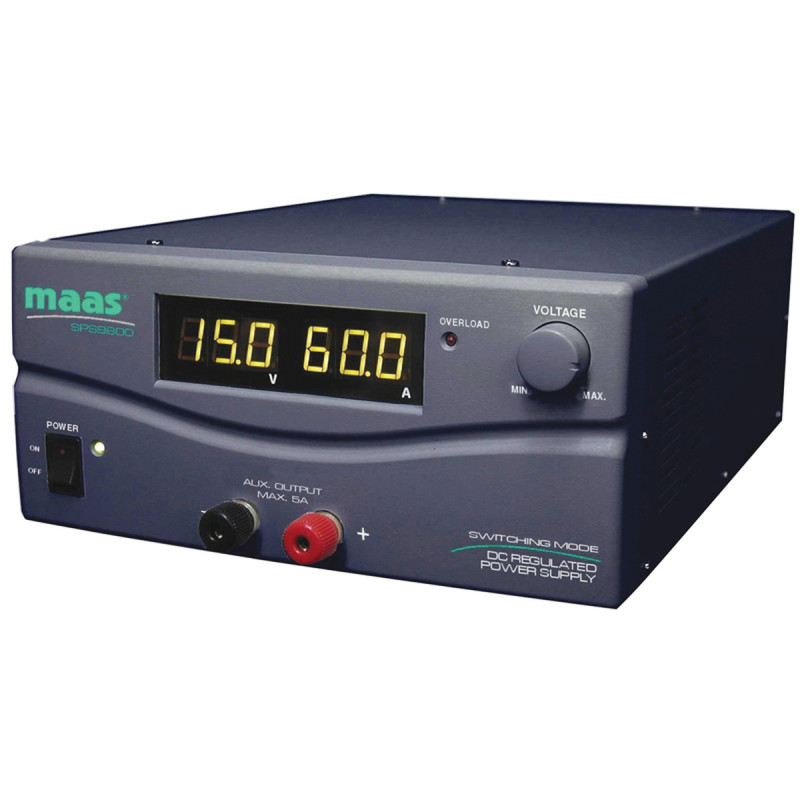

This high current switching mode DC regulated output power supply is designed with a high efficient active power factor correction. The constant current limiting protection allows the outpu current to remain stable but the output voltage decreases to a level that permits safe operatio of the power supply. The remote sensing terminals are used to compensate for output line losses so that a precise regulation can be achieved for critical voltage application away from the power supply. The output voltage level and ON-OFF can be externally controlled via the remote terminal. It is ideal for applications that need good quality high DC current network with precise point of voltage regulation. SPS-9600 / SPS-9602 has a small footprint for its 900W continuous maximum power. It is suitable for a wide range of applications such as street blaster super high power car audio demonstration console, radio equipment and etc.
- Total max. continuous output current 60A (SPS-9600) / 30A (SPS-9602)
- Main Output / Remote Sensing / Remote Control / terminals at the back
- Front terminals 5A (SPS-9600) / 3A (SPS-9602) limiting.
- Precise Load Point Voltage
- Remote Sensing for remote point of regulation.
- Analogue Remote control terminals for output voltage adjustment and *on/off*
- Floating Ground Design
- Overload / Over-temperature / Short Circuit Protections
- Constant Current mode with LED indicator prevents overloading
- Variable speed thermally controlled fan
- High RFI stability
- Active power factor correction ( P.F. > 0.97 )
- Housing are available in Pantone warm grey 1C or Pantone 433C dark grey
- Overload protection with constant current
- Low Ripple & Noise
Type
Switching Mode
Input Voltage - 200 - 240VAC 50Hz~ (or on request)
Rated output Power - 900W
Number of output - 1
Output Voltage range - 1-15VDC
Output Current range - 60A
Voltage load regulation - 0.1% +5mV
Current load regulation -
Voltage line regulation - 0.05% +3mV
Current line regulation -
Output ripple and noise - ≤40mVp-p
Voltage Setting Resolution -
Voltage meter digit and accuracy - 3 Digit LED Display ±(1% +1 count)
Current Set Resolution -
Current meter digit and accuracy - 3 Digit LED Display ±(1% +1count)
Extra output Voltage -N/A
Auto-range (con) -No
Constant Current mode - Yes
Remote programing - No
Connection type - N/A
Preset program - No
Internal program - No
Commend Set - N/A
Optimal Efficiency - ≥85.7%
Cooling Method - Thermostatic Control Fan
Protections - Overload (Constant Current Limiting), Over Temperature, Short Circuit, OVP Protection - Floating jord Yes
Approvals
CE EMC: EN 55022 LVD: EN 60950
Dimensions (WxHxD)
220x110x360 mm
Weight
5.8kg
