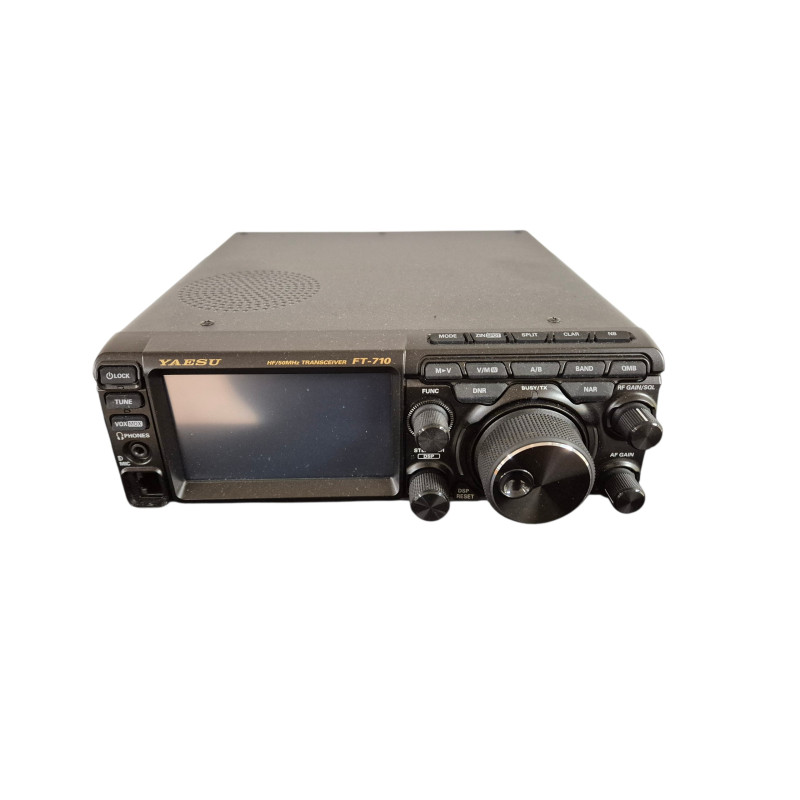

The new FT-710 AESS is a compact design yet provides 100W output, utilizing the advanced digital RF technology introduced in the FTDX101 and FTDX10 series.
A few of the remarkable features of the new FT-710 AESS are:
- YAESU Unmatched SDR technology emphasizes the Receiving Performance
- Band Pass Filters dedicated for the amateur bands to eliminate out-of-band unwanted signals
- RF Front-End design with the 250MHz HRDDS (High Resolution Direct Digital Synthesizer) enables phenomenal Multi-Signal Receiving Characteristics
- QRM rejection by the dual core 32-bit high speed floating decimal point DSP for SHIFT/ WIDTH/ NOTCH/CONTOUR/
APF (Audio Peak Filter)/ DNR (Digital Noise Reduction)/ NB (Noise Blanker) and 3-Stage Parametric Equalizer
- High Resolution 4.3-inch TFT Color Touch Panel Display
- 3DSS (3-Dimensional Spectrum Stream)
- VMI LED (VFO Mode Indicator) placed around the VFO dial shows the current operating mode (VFO-A, VFOB, Memory Mode and Clarifier/Split Operation)
- “PRESET” Mode Function most suitable for FT8 Operation
- AESS: Acoustic Enhanced Speaker System with SP-40 creates the high-fidelity audio output
- External Display Connection Terminal (DVI-D)
- Built-in High Speed Automatic Antenna Tuner with 100 channel memory
- Support the FC-40 Auto Antenna Tuner
- SD Memory Card can be used to save the communication record, transceiver setting, the memory contents, screen capture images, and to update the firmware
- Two (2) USB Ports (Type-A and Type-B)
- Other essential features such as CW ZIN and SPOT, IPO (Intercept Point Optimization), and Remote Operation with Network Remote Control System to name a few
| Frequency band |
|
HF, 50 MHz, 70 MHz |
| Mode of Traffic |
|
SSB/CW/FM/AM/RTTY/PSK |
| Power output |
|
5-100 Watt |
| |
|
5-50 Watt AM |
| Screen |
|
5 tum color
|
| Auto-tuner |
|
160 - 6 Meter |
| CAT Control |
|
USB |
| Size |
|
239 mm x 80 mm x 247 mm (excl buttons and knobs) |
| Weight |
|
4.5 kg |
