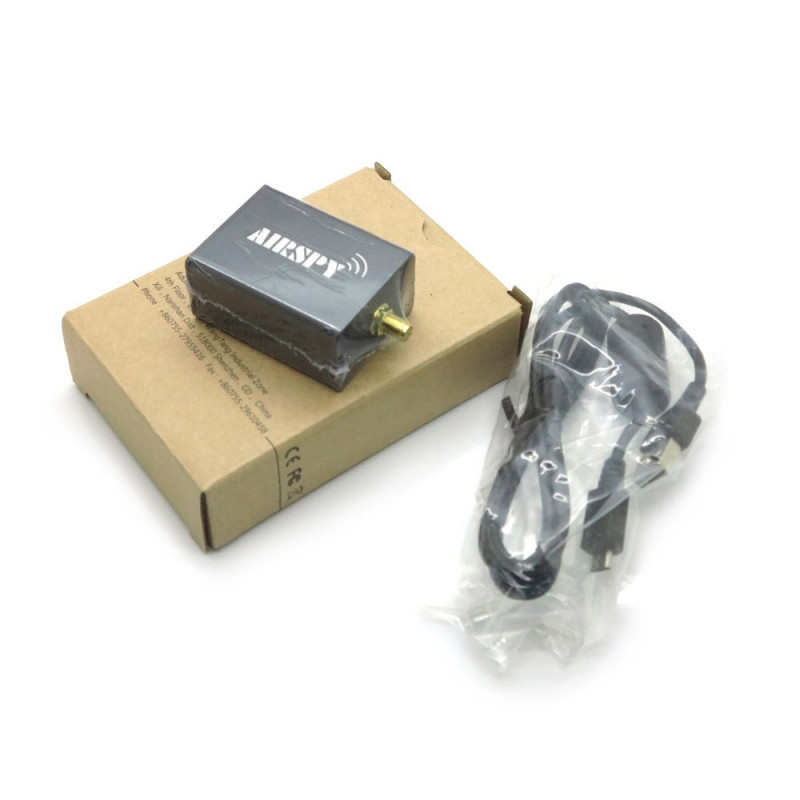

Airspy R2 SDR reciever

Reference 04-0023

Brand Airspy

Rating

Write a review

kr3,095.00

Tax included

Quantity

In stock : 2

Description

Airspy R2 sets a new level of performance in the reception of the VHF and UHF bands thanks to its low-IF architecture based on Rafael Micro R820T2 (or R860) and a high quality Oversampling 12-bit ADC and a state of the art DSP resulting in up to 16-bit resolution at narrow band channels.

In Oversampling Mode, the Airspy R2 applies Analog RF and IF filtering to the signal path and increases the resolution to up to 16-bit using the software decimation. The net result is Spectacular Performance!

The coverage can be extended to the HF bands via the SpyVerter up-converter companion.

The Airspy R2, like its predecessor is 100% compatible with all the existing software including the de facto scanning standard SDR#, but also a number of popular software defined radio applications such as SDR-Radio, HDSDR, GQRX and GNU Radio.

For a more complete list of supported software, check the download page.

Typical Applications

VHF/UHF/SHF Radio Monitoring
Coherent Receiver Array
Direction Finding
Passive Radar
ADS-B, ATC
Radio Astronomy
Satellite IF
Telemetry Radio Receiver
Wide Band Scanner
Education
Ham Radio, etc.

Supported platforms

Windows Vista, 7, 8, 8.1 and 10 (For Windows XP, please contact us)
Linux
*BSD
OSX

Technical specifications

Continuous 24 – 1700 MHz native RX range, down to DC with the SpyVerter option
3.5 dB NF between 42 and 1002 MHz
Maximum RF input of +10 dBm
Tracking RF filters
35dBm IIP3 RF front end
12bit ADC @ 20 MSPS (10.4 ENOB, 70dB SNR, 95dB SFDR)
10MSPS IQ output
Experimental 2.5MSPS IQ output for low power devices (Raspberry Pi, Odroid, etc.) – Not recommended for high performance applications.
Up to 80 MSPS when using custom firmware
Cortex M4F @ up to 204MHz with Multi Core support (dual M0)
0.5 ppm high precision, low phase noise clock
1 RTC clock (for packet time-stamping)
External clock input (10 MHz to 100 MHz via MCX connector) – Ideal for phase coherent radios
10 MHz panoramic spectrum view with up to 9MHz alias/image free
IQ or Real, 16bit fixed or 32bit float output streams
No IQ imbalance, DC offset or 1/F noise at the center of the spectrum that plagues all the other SDRs
Extension ports: 16 x SGPIO
1 x RF Input (SMA connector, up to 30kV ESD protection)
1 x RF Output (Loopthrough, U-FL, 15kV ESD protection)
2 x High Speed ADC inputs (up to 80 MSPS, U-FL, DC coupled, 15kV ESD protection)
4.5v software switched Bias-Tee to power LNA’s and up/down-converters
8 x programmable high speed gpio’s up to 100MHz
3 x programmable synchronized clock outputs up to 160MHz
1 x core CPU clock output
1 x reset pin
2 x regulated +5.0 and +3.3v pins
1 x JTAG header
No drivers required! 100% Plug-and-play on Windows Vista, Seven, 8, 8.1 and 10
Operating temperature: -10°C to 40°C
