MHF-350M HAMKING HF antenna kit 3.5, 7, 10, 14, 18, 21, 28, 29 and 50 Mhz

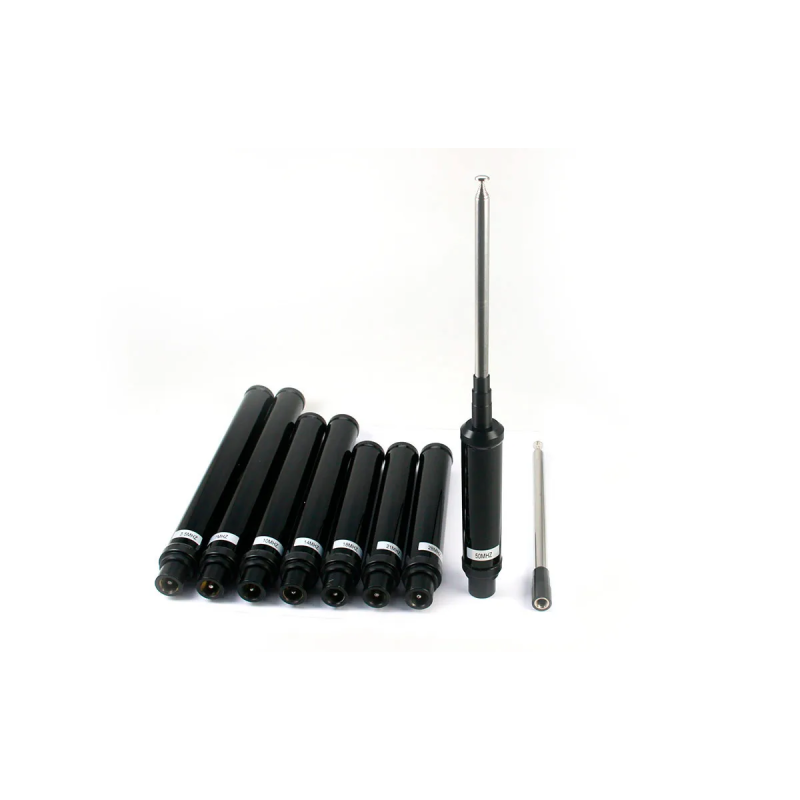

The HamKing MHF-350M is a complete mobile HF antenna kit with separate coils for 3.5, 7, 10, 14, 18, 21, 28 (29) and 50 MHz packed in a nice-looking carry pouch. With a low VSWR on each band, under 1:1.5.

Supplied with two antenna elements; one element for 3.5-28 MHz and one element for 50 MHz. With a frequency to length overview to adjust the antenna elements on the advised length for each frequency coil. By sliding the antenna elements in and out you can fine tune the VSWR. Maximum power handling of 200 Watts SSB.

3.537 MHz: 2375 mm length/adjustable range: 3.48~3.64 MHz
7.1 MHz: 2316 mm length / Adjustable range: 6.956~7.22 MHz
10.125 MHz: 2311 mm length/adjustable range: 9.97~10.23 MHz
14.175 MHz: 2299 mm length/adjustable range: 13.875~14.42 MHz
18.118 MHz: 2230 mm length/adjustable range: 17.59~18.24 MHz
21.225 MHz: 2185 mm length/adjustable range: 20.65~21.63 MHz
29,000 MHz: 2255 mm length / adjustable range: 27.90~29.95 MHz
51.500 MHz: 1372 mm length / adjustable range: 50.60~53.60 MHz

Electrical type: 1/4 λ base loading
Gain: 2.15 dBi
VSWR: ≤ 1.5 on every band
Power peak: 200 Watts SSB
Impedance: 50 Ohm
Polarization: Linear vertical
