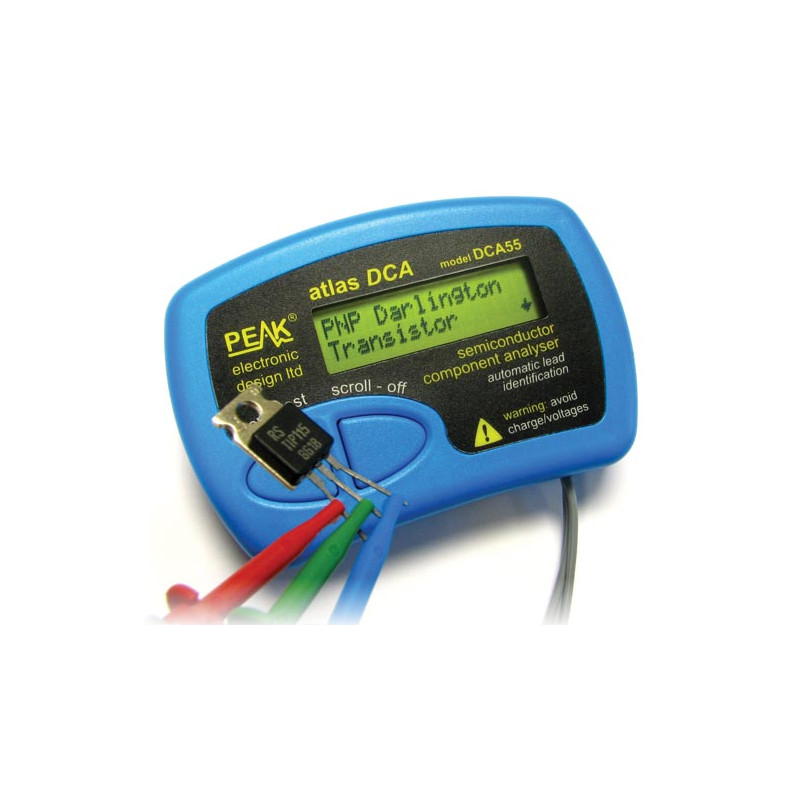

Peak Atlas DCA55 Semiconductor Analyser

Component Support

Bipolar transistors (NPN/PNP inc Silicon/Germanium)
Darlington transistors (NPN/PNP)
Enhancement mode MOSFETs (N-Ch and P-Ch)
Depletion mode MOSFETs (N-Ch and P-Ch)
Junction FETs (N-Ch and P-Ch). Only gate lead identified.
Diodes and diode networks (2 and 3 lead types).
LEDs and bi-colour LEDs (2 lead and 3 lead types).
Low power sensitive Triacs and Thyristors (<5mA trigger and hold)

Measurements

Part type identification.
Pinout identification.
BJT current gain (hFE).
BJT base emitter voltage (Vbe).
BJT collector leakage current.
MOSFET gate threshold voltage.
Diode forward voltage drop (Vf).

Includes:

DCA55 Semiconductor Component Analyser.
Fitted universal premium hook probes.
AAA Alkaline battery.
