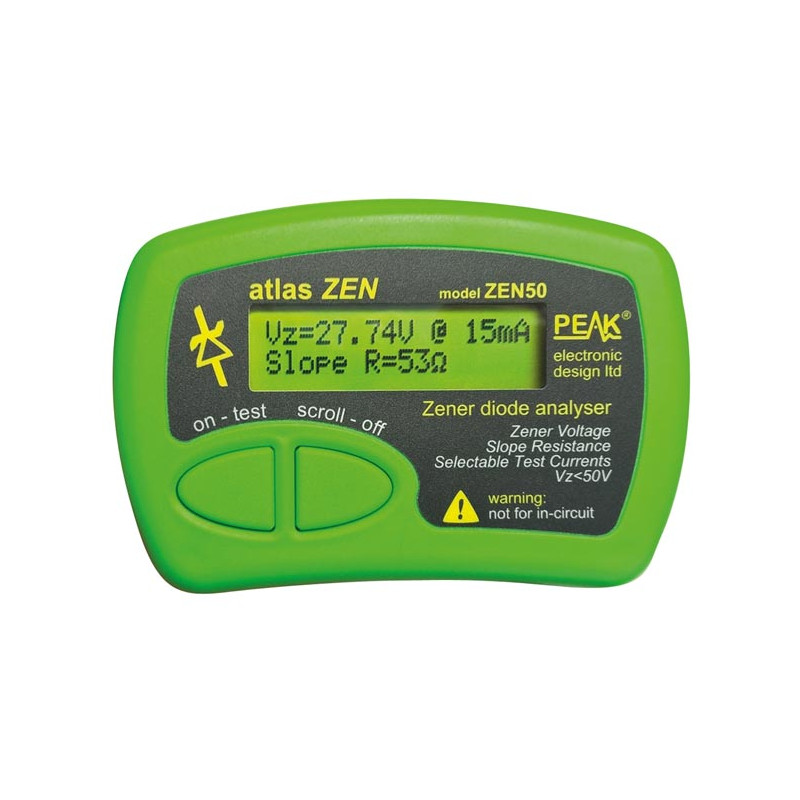

Peak Atlas ZEN50 Zener Diode Analyser (0-50V)

The Atlas ZEN is ideal for testing Zener diodes (including avalanche diodes), transient suppressors, LEDs and LED strings.

It generates constant current pulses (selectable from 2mA, 5mA, 10mA and 15mA) at voltages from 0V to 50V. So even high voltage Zeners or high voltage LED strings can be tested.

Test currents are supplied in narrow pulses to ensure that the component under test remains at a constant temperature.

The voltage of the part is displayed on the screen together with the test current and also a measure of the component's slope resistance (also known as dynamic impedance).

Includes:

ZEN50 diod Analyser.
Fitted universal premium hook probes.
AAA Alkaline battery.
