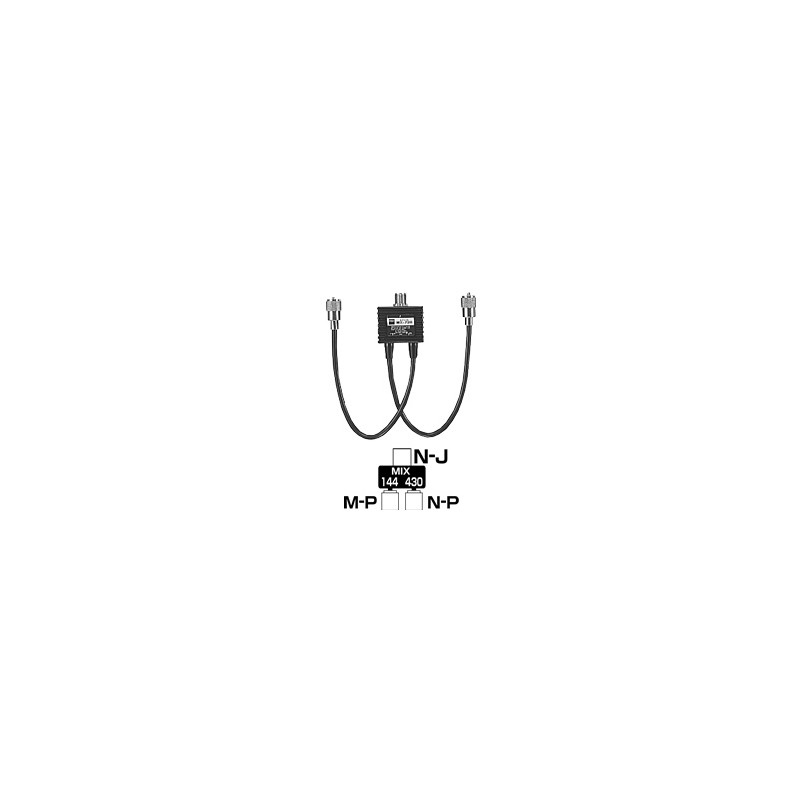

Diamond MX-72A Duplex filter for HF/VHF + UHF

Used with advantage for transceivers with two outputs to be connected to an antenna.

Contact, antenna N (female)
Contact, transceiver UHF(male) N (male)
Frequency range, input 1 1.6-30, 49-150 MHz
Frequency range, input 2 350-460 MHz
Loss < 0.15 dB (LPF)
          < 0.25 dB (HPF)
Max power 1 kW PEP (1.6-30 MHz)
          400 W PEP (140-150 MHz)
          250 W PEP (400-460 MHz)
Impedance 50 Ohm
Isolation > 60 dB
SWR < 1.2:1
Loss 0.15 dB (LPF)
          0.25 dB (HPF)
Size 46 x 25 x 57 mm
Weight 220 grams
