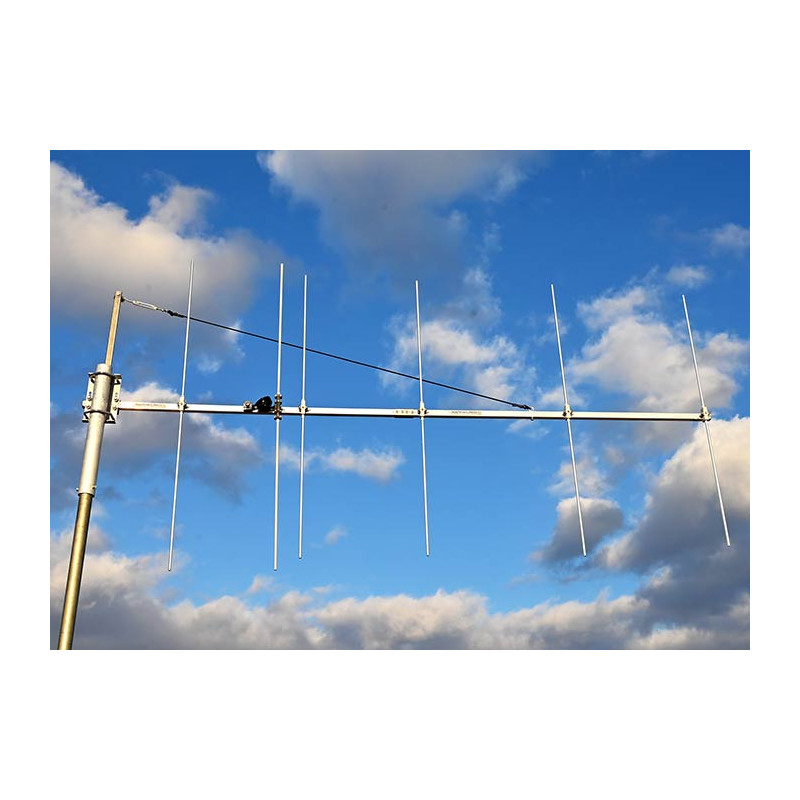

2m6WARV 6el 144-146Mhz Vertical polarization

Electrical Specifications of 2m 6Element Rear Mount FM Wideband Antenna 2m6WARV
Frequency Range: 144 – 146 MHz (144-148MHz)
Free Space Forward Gain: 11 dBi
Front-to-Back Ratio: 22 dB
-3 dB Horizontal Beamwidth: 60°
Polarization: Vertical
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 500W (By order “P” Power version 1500W)
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N”

Mechanical Specifications of 2m 6Element Rear Mount FM Wideband Antenna 2m6WARV

Number of elements: 6
Element Diameter: 8 mm Aluminum tube
Dipole Diameter: 8 mm Hard Copper tube plastic coated
Longest element: 1040 mm
Element Mounting Position: On the side
Balun and Connector: Included
Boom Length: 2 m
Boom Size: 20 x 20 mm
Number of Boom Pieces: 2
Guy rope support: Yes, included
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Survival Wind Speed: 150 km/h
Transportation Length: 1.1 m
Antenna Weight: 2.6 kg
