The SV4401A also supports firmware updates, PC software, and replacement parts, making ongoing use, maintenance, and upgrades more practical.
If you need more than a basic pocket instrument for occasional SWR checks, and want a handheld VNA that is better suited to serious RF measurement work, the SV4401A fits that role more clearly.

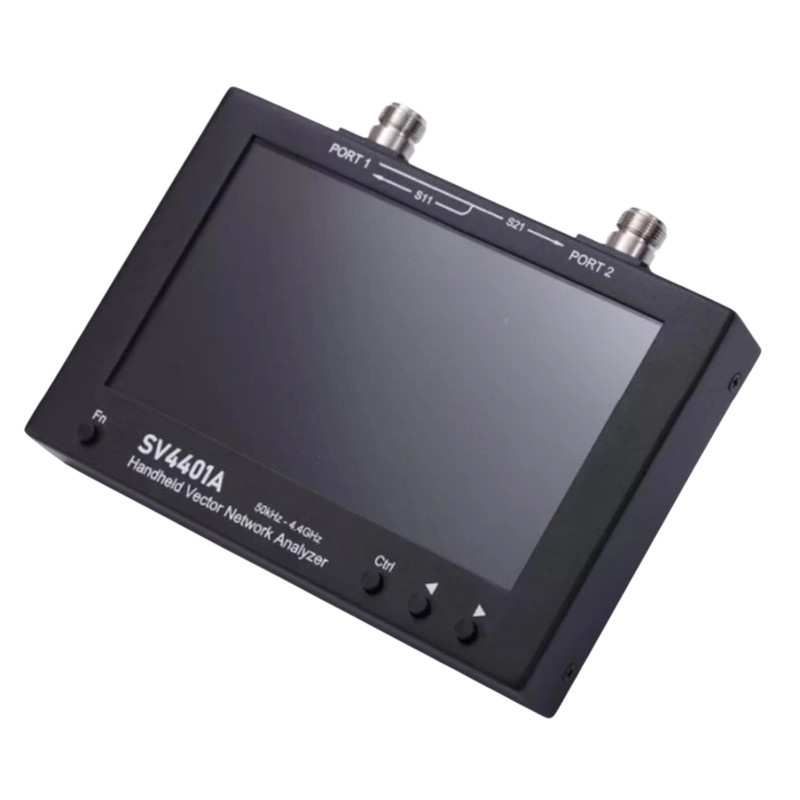

The new SV4401A is a portable vector network analyzer (VNA) that covers a frequency range of 50kHz ~ 4.4GHz. It can be used for S11 and S21 measurements. The S21 dynamic range of the SV4401A is 75dB, while the S11 dynamic range is 50dB.
The SV4401A is eminently suitable for antenna testing on the MF/HF/VHF/UHF bands, e.g. shortwave antennas, ISM band antennas, WiFi antennas, Bluetooth antennas, GPS antennas, etc. Of course, filters, amplifiers, attenuators, cables, power dividers, couplers, duplexers and other RF components can also be measured. A variety of display formats are supported: log mag, linear mag, phase, Smith R+jX, Smith R+L/C, VSWR, polar, group delay, resistance, reactance, etc.
For cable length measurement, SV4401A supports TDR function.
The metal case is not only rugged, but also effectively shields electromagnetic interference.
The dimensions of the SV4401A are 190 x 130 x 30mm, and a convenient bracket on the back of the unit simplifies desktop use.
As an RF interface, the SV4401A has an N female connector, and the scope of delivery also includes a pair of N-to-SMA adapters that can be used to connect DUTs with SMA interfaces.
The sampling speed of the signal processing system is 400 points/s, which enables measurements in quasi-real time. The maximum number of sampling points is up to 1001.
The 7" touchscreen (resolution: 1024 x 600) is complemented by four physical buttons for quickly setting the frequency range, scaling, turning waveforms on and off, adding and deleting markers, screenshots, etc. Thus, a simple and intuitive workflow is well taken care of.
The SV4401A has two built-in 3350 mAh 18650 lithium batteries with a battery life of up to 4 hours. The charging interface is USB Type-C, and the included cable can be used to both charge the device and transfer data. At the same time, the SV4401A has a built-in 8GB memory card that can be used to store calibration status, snp files, screenshots, etc.
A 5V/2A charger (not included) is recommended for charging the batteries.
Package Included:
- 1 x SV4401A main unit
- 1 x Gold-Plated SMA Calibration Kit (LOAD, OPEN and SHORT)
- 2 x SMA Female to N male Connector
- 2 x SMA Female to SMA Female Connector
- 1 x SMA male to SMA male Connector
- 1 x 50cm RG316 Cables
- 1 x USB Type-C Data Cable
Reference: CH0020004
Brand: Chelegance - JNCRadio
Manufacturer:
Chelgance co.
Limited 804 Building 5
QianLongJingYuan Garden MinZhi street
518000, Shenzen Guangdong PRC
Contact: support@chelegance.com
The SV4401A also supports firmware updates, PC software, and replacement parts, making ongoing use, maintenance, and upgrades more practical.
If you need more than a basic pocket instrument for occasional SWR checks, and want a handheld VNA that is better suited to serious RF measurement work, the SV4401A fits that role more clearly.
