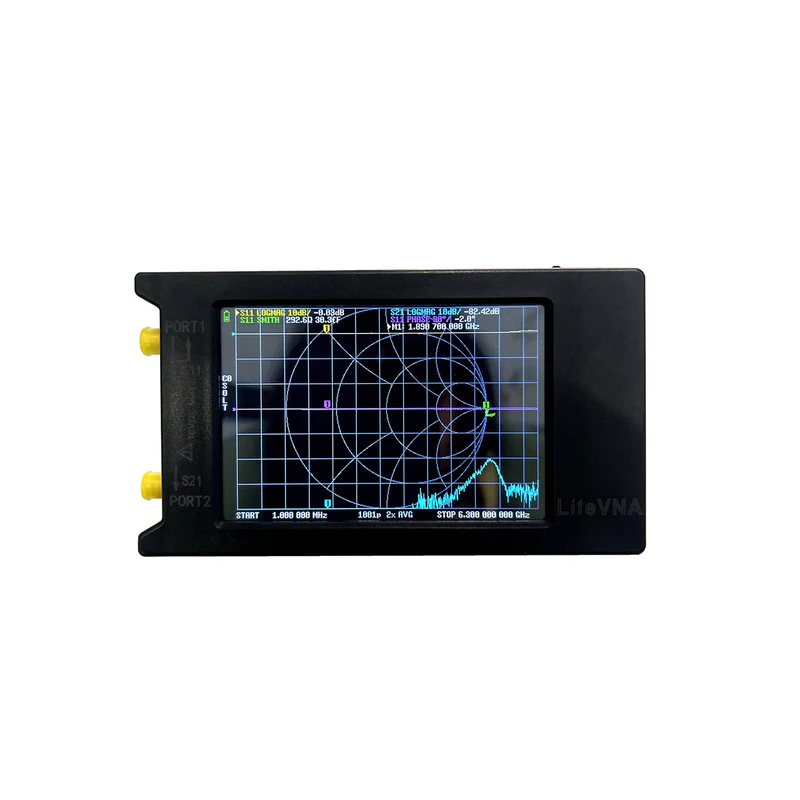

LiteVNA 64 Vector Network Analyser 50kHz-6.3GHz

The LiteVNA is a portable 50 kHz – 6.3 GHz vector network analyzer based on the design of the NanoVNA and SAA2. This VNA is developed to measure the reflection and transmission coefficients of equipment without the need for a large bench‑top analyzer.

LiteVNA uses a single mixer, which enables S11 and S21 measurements through RF switching, as well as TDR/DTF measurements via IFFT calculations.

The analyzer features a 3.95” touch screen capable of displaying measurements with 10 to 1001 data points. It is also equipped with a built‑in 2000 mAh battery and can be connected to an Android phone or a PC. Once connected, the analyzer can be controlled and the measurement data displayed on the device.

Specifications:

Frequency Range:
50 kHz – 6.3 GHz

Dynamic Range:
70 dB (<3 GHz)
50 dB (≥3 GHz)

S11 Noise Floor:
< –50 dB (<3 GHz)
< –40 dB (≥3 GHz)

Frequency Stability:
< 0.5 ppm

Sweep Speed:
550 points/s

Sweep Points:
10–1001 points (on the device)
1–1024 points (via USB)

Display:
3.95" TFT LCD touch screen (480 × 320)

Power Supply:
Li‑polymer 2000 mAh battery (USB charging)

Package Includes:
1 × LiteVNA 64 Vector Network Analyzer (with 2000 mAh battery)
1 × USB Type‑C to Type‑A data cable
2 × 30 cm SMA male‑to‑male SS405 RF cables
1 × SMA male calibration kit – OPEN
1 × SMA male calibration kit – SHORT
1 × SMA male calibration kit – LOAD
1 × SMA female‑to‑female adapter
