Hari Windom antenn 80-10m 1kW 42m

The Windom antenna is a dipole where the balun is not in the middle but slightly offset. In some cases, this allows for a more favourable suspension and a shorter feed line (less weight!) because the balun is closer to the house.

The Windom antenna can only be used for bands that are in harmony with each other, i.e. for 160/80/40/20/17/12/10m. The lowest (longest) band is determined by the length of the antenna.  The SWR is good for all bands, usually no tuner is needed. Due to the high footpoint impedance, a 1:6 balun with PL socket is used. Construction with tensile steel wire with transparent plastic sheathing. Max. permissible transmitting power is 1000 W.

---------------------------------------------------------

Windom antenna 10-80 meters
Balun at 1:6 with PL connection

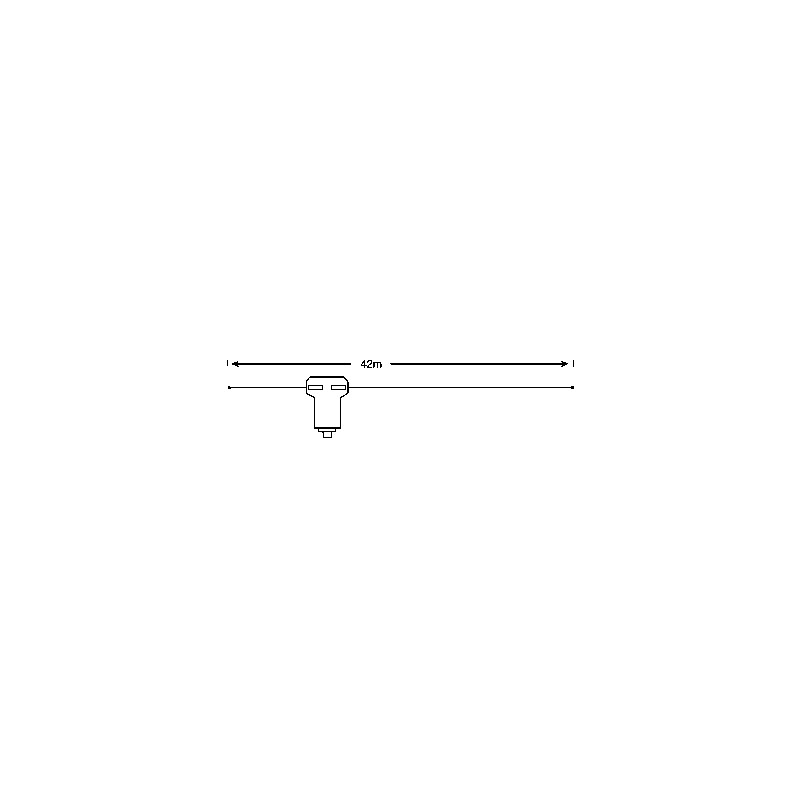

Length 42m
Power 1kW
