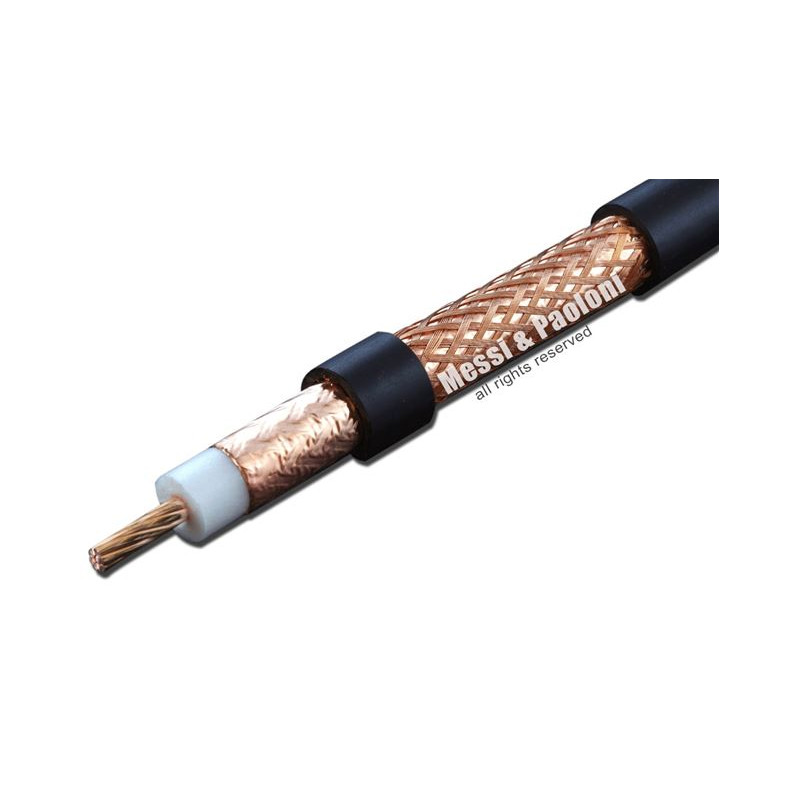

Cable Ultraflex 10 "Competition" 10.3 mm
Ultraflex 10 is a cable with an outer diameter similar to RG-213, but with approximately half the attenuation.
UV-resistant green PVC with a total diameter of Ø 10.3 mm.
71% Shielding – 144 copper wires
Manufactured using 24-spool machines (instead of 16). Thanks to 50% more crossovers, it provides exceptional Screening Attenuation (SA) and reacts to twisting and bending like a spring.
100% Shielding with foil overlay
The first shield is made of copper with an applied PE layer that prevents cracking during tight bends.
Dielectric made of high-pressure injected foamed polyethylene
Total diameter Ø 7.3 mm ± 0.05 (0.287”)
| Impedans | 50ohm | |
| Outer diameter | 10.3mm | |
| Dämpning | vid 100m | |
| 1.8MHz | 0.70dB | |
| 3.5MHz | 0.90dB | |
| 14MHz | 1.40dB | |
| 28MHz | 1.90dB | |
| 50MHz | 2.60dB | |
| 144MHz | 4.60dB | |
| 430MHz | 8.50dB | |
| 1296MHz | 15.30dB | |
| 2400MHz | 21.70dB | |
| 5000MHz | 33.00db | |
| 6000MHz | 36.80dB | |
| Weight (100m) | 13Kg |
Reference: 41-1228
Brand: Messi & Paoloni
Manufacurer:
Name: Messi & Paoloni srl.
Address: Via G. Conti 1, IT-60131 Ancona Italy
Phone: +39 071 2861527
Email: info@messi.it
Web: https://messi.it/en/home.htm
Certifiering: https://messi.it/en/company/certificates.htm
