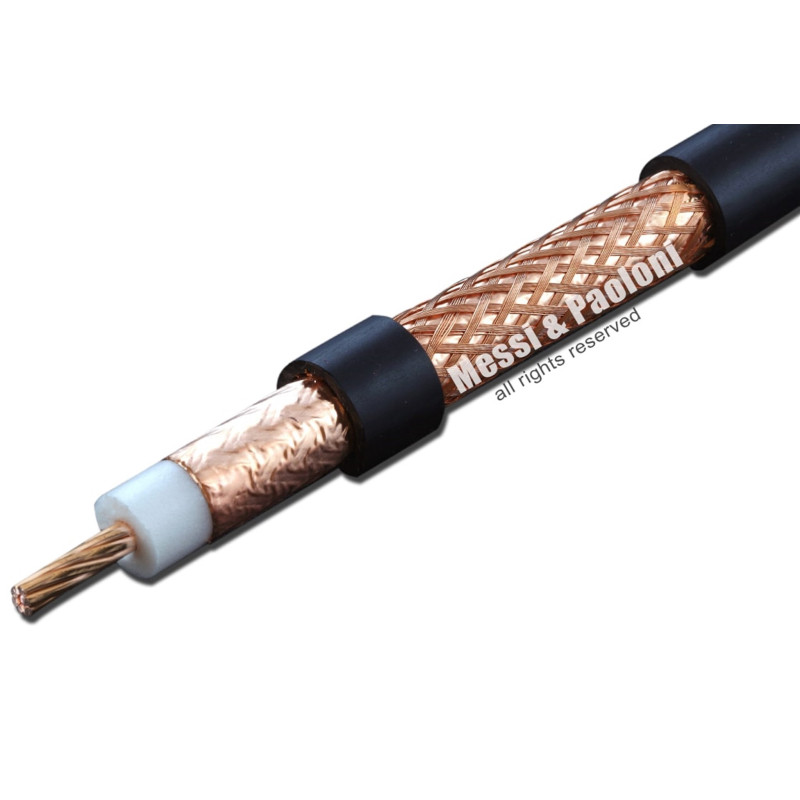

Extra flexible professional coaxial cable with a stranded core.
The outer PVC jacket is made of black UV‑resistant PVC.
Diameter: Ø 10.3 ± 0.15 mm (0.405 inches)
Double Shielding
– Aluminum braid coated with copper, providing high mechanical strength. Shielding effectiveness: 71% – highly effective against low‑frequency noise pulses.
– Copper foil, highly effective against high‑frequency interference. The copper foil includes a PE coating to prevent cracking when subjected to tight bending radii.
Overall shielding effectiveness: 100%
Center Conductor: 7 strands of 1 mm Ø — total diameter Ø 3 mm, made of 99.99% pure copper (Cu).
Dielectric: Injected high‑pressure polyethylene foam, 3‑layer dielectric. Diameter: FPE Ø 7.3 ± 0.05 mm.
| Impedence | 50ohm | |
| Size (Jacket) | 10.3mm | |
| Attenuation | 100m | |
| 28MHz | 2.00dB | |
| 50MHz | 2.70dB | |
| 144MHz | 4.6dB | |
| 430MHz | 8.1dB | |
| 1296MHz | 14.7dB | |
| 2400MHz | 20.8dB | |
| 5000MHz | 31.9db | |
| 6000MHz | 35.7dB | |
| Net weight (100m) | 11.6Kg |
Reference: 41-1228
Brand: Messi & Paoloni
