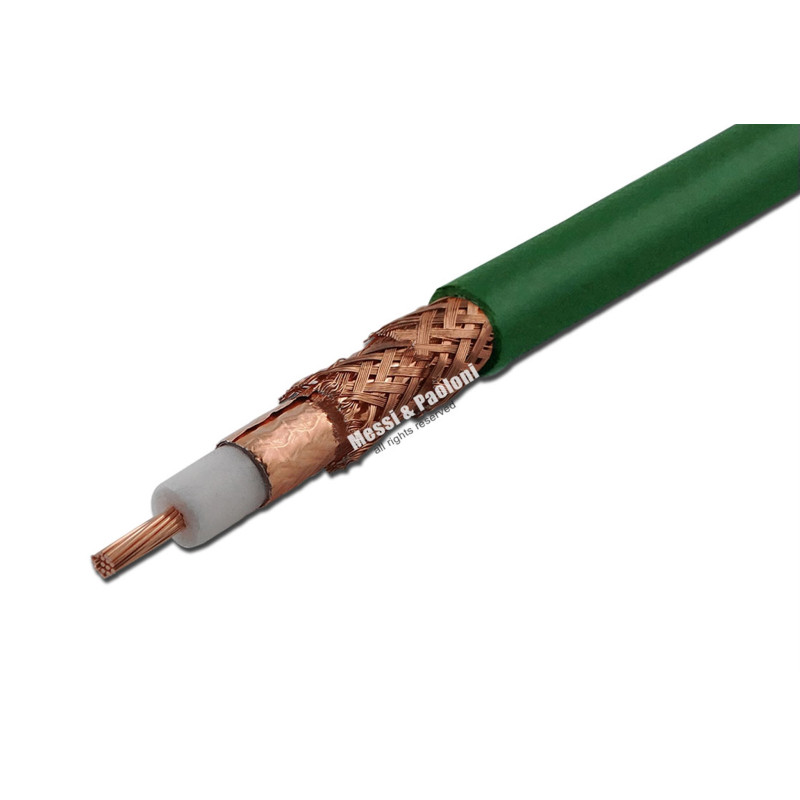

The lightweight and flexible Pota-Flex 7 coaxial cable from Messi e Paoloni has an outer diameter of 7.65 mm, with 19 individual copper wires forming the inner conductor. The shielding consists of 3 layers: 2 x braided copper wire with 144 wires each, copper foil underneath with a PE layer surrounding the dielectric. This not only provides ideal HF shielding, but also protects the cable from mechanical damage. The dielectric is foamed, resulting in very low attenuation in relation to the diameter.
| Impedans | 50ohm | |
| Outer diam | 7.65mm | |
| Loss | 100m lenght | |
| 28MHz | 3.00dB | |
| 50MHz | 4.00dB | |
| 144MHz | 6.90dB | |
| 430MHz | 12.30dB | |
| 1296MHz | 22.33dB | |
| 2400MHz | 32.30dB | |
| 5000MHz | 49.30db | |
| 6000MHz | 55.30dB | |
| Net weight (100m) | 5.4Kg |
Reference: 19-9950
Brand: Messi & Paoloni
Manufacurer:
Name: Messi & Paoloni srl.
Address: Via G. Conti 1, IT-60131 Ancona Italy
Phone: +39 071 2861527
Email: info@messi.it
Web: https://messi.it/en/home.htm
Certifiering: https://messi.it/en/company/certificates.htm
