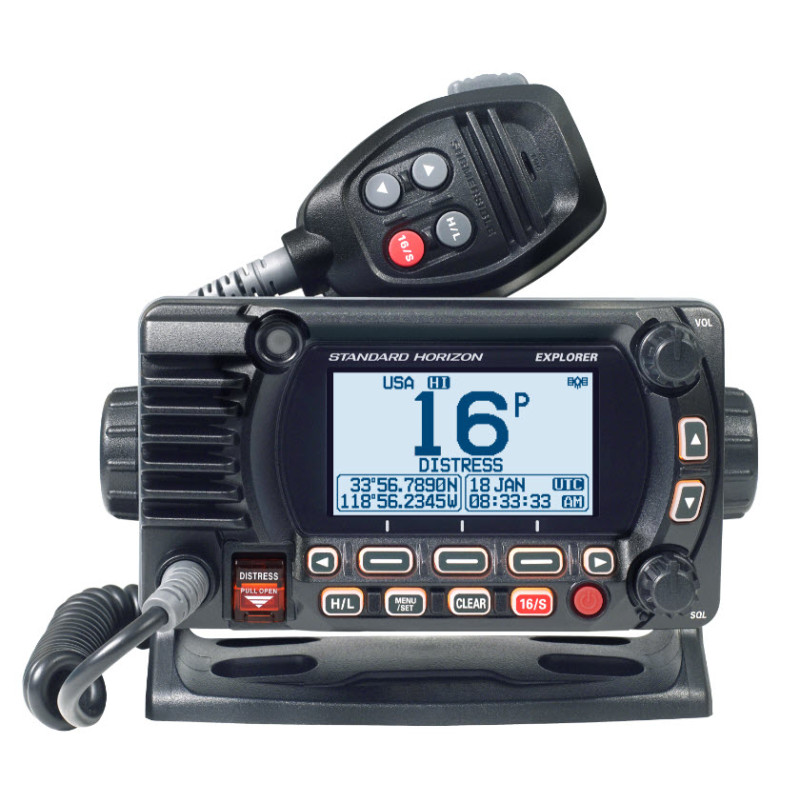

Standard Horizon GX1850GPS/E Marine radio 25 W

Standard Horizon GX1850GPS/E

New in the EXPLORER series VHF Marine 25W

The Horizon GX1850GPS with it's built-in 66-channel WAAS (navigation by satellite) GPS receiver is the top-nudge modern marine radio. It's supplyed with the flexibility to use NMEA2000 data or the built-in WAAS GPS to provide more accurate position data on the radio's display.

And it's NMEA2000 compatible with easy plug and play connection to the NMEA module.
A single plug-in interface enables connection of GPS data and DSC calls between compatible devices.

The GX1850GPS is compatible with Standard Horizon's latest remote control microphone RAM4, model SSM-70, where all functions on the main radio can be controlled through RAM4. Including all radio functions, DSC functions and intercom functions between the remote control microphone and the radio base.

Easy-to-operate menu system through E2O redesigned with the operator in mind. The new easy-to-use menu system now more intuitive than ever. You get access to all menu functions and settings with just a few simple steps. DSC calling and DSC programming has never been easier.

Mounting a VHF radio has never been easier. The Explorer Series VHFs have an ultra-thin, compact radio body, just 82mm deep, or half the depth of comparable VHF radios on the market.
The rear housing design also provides flexibility for flush mounting the radio (requires optional MMB-97 bracket) in tight areas or console mounting the radio by taking up less dashboard space and allowing for more mounting options.

.

Features:

-Built-in 66 Channel WAAS GPS receiver
-Class D Fixed Mount VHF Radio. Meets ITU-R M493-13 Class D DSC (Digital Selective Calling)
-NMEA2000 and NMEA 0183 Connectivity
-Ultra-slim and compact Rear case design (Depth 82mm)
-E2O (Easy to Operate) Icon & Menu System
-Pre-set key stores up to 10 favourite channels
-Second Station Remote Microphone (Optional RAM4 SSM-70H)
-Intercom Feature between the Radio and an Optional Second Station
-Programmable Scan, Priority Scan, and Multi Watch
-Automatic DSC polling of up to 6 ships GPS positions
-GPS Compass, Waypoint and GPS status pages
-Enter, Save, and Navigate to a waypoint using the Compass page
-Navigation (LAT/LON, SOG, and COG) information shown on display
-GM (Group Monitor) Using DSC Group position Calling
-MOB (Man overboard) Operation
-Selectable Night Mode Display
-Noise cancelling microphone with channel change selection, 16/S and H/L keys
-ATIS Mode for European Inland Waterways
-All USA/International and Canadian Marine Channels
-3 Year Waterproof Warranty

.

Technical data:

Channels: All international
Antenna Impedans: 50Ohm
Waterproof rating: IPX8 (1,5m for 30min)
Dimensions: 138x73x95mm
Wheigt: approx 940gr

Transmitter:
Frequency range: 156.025-161.600MHz (International)
RF out: 25W/1W
Max. Deviation: +/-5.0kHz
Spurious emission: -80dBc/-66dBc

Receiver:
Frequency range: 156.050-163.275MHz (International)

GPS:
Reciever channels: 66 Channels
Geodetic Datum: WGS84
SBAS Correction: WAAS, EGNOS, MSAS, GAGAN

Package Includes:

Mounting Bracket, two Mounting Knobs, and hardware.
Power Cord with 6 Amp fuse and holder
DSC Warning Sticker
Owner’s Manual
Warranty Card
