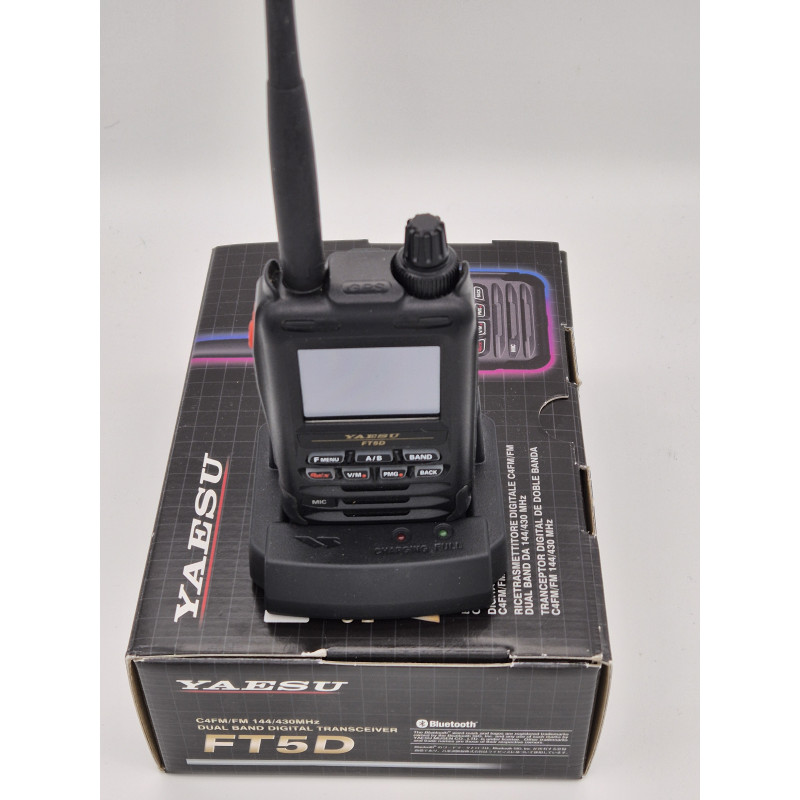

Yaesu FT5DE C4FM/FDMA 144/430MHZ Second hand

90-0079
Rating
kr3,800.00
Tax included
Quantity
In stock : 1

Description
  • - Compact Design and Reliable 5W RF Power Output (Selectable 5W / 2.5W / 1W / 0.3W)
  • - High Visibility Full-Color TFT Touch panel Display (*The color of the operating frequency may be selected from White, Blue or Red.)
  • - Dual band Simultaneous Receive (V+V / U+U / V+U / U+V) & C4FM/C4FM Standby - Advanced C4FM Digital Mode with AMS (Automatic Mode Select), DG-ID feature and Smart Navigation
  • - 1W (1000mW) of loud audio power with C4FM clear and crisp audio quality - Rugged Construction: Robust Rubber Protection / IPX7 Rating Water Protection
  • - TOUCH & GO Operation with Activity Monitor
  •      ・PMG (Primary Memory Group Activity Monitor)
  •      ・CAM (CH Activity Monitor)
  • - VFO Band Skip Function
  • - Memory Auto Grouping (MAG) Function
  • - High Speed Band Scope Function enables monitoring up to 79ch centered on the current VFO frequency (Selectable 79 / 39 / 19ch)
  • - Full-Flat back body provides excellent grasp / Quick Release Holster(SHB-26BK) Included
  • - Built-in 66ch High-Sensitivity GPS Receiver
  • - Built-in Bluetooth® unit and the VOX function support wierless and easy Hands-free operation
  • - WIRES-X Portable Digital Node compatible
  • - Dual Simultaneos AM/FM Broadcast Reception and 2-channel Monitoring
  • - 1200/9600bps APRS® Data Communication
  • - Recording Function
  • - Micro SD Card Slot (up to 32GB)




Frequency range RX 0.5 - 999.9 MHz
                             TX 144 - 146 MHz, 430 - 440 MHz
Power output 5/2//0.3 W optional
Channel stage 5/6.25/8.33/9/10/12,5/15/20/25/50/100 kHz
Mode of traffic F1D, F2D, F3E, F7W
Drive voltage 7.2 V DC (battery) or external supply
Power consumption 140 mA (reception, monoband)
          86 mA (standby)
          67 mA (standby with power saving)
          2 mA (Auto-power off)
          1.6 A (TX 5W 144 MHz)
          1.9 A (TX 5W 430 MHz)
Size 62 x 100 x 34 mm without antenna & buttons
Weight 282 g (with standard battery and antenna)



Product Details
90-0079

Manufacturer:

Namn: Yaesu Musen CO.LTD.
Adress: Tennozu Parkside Building, 258 Higashi-Shinagawa-ku Tokyo 140-0002 Japan

Telefon: +714 827-7600
Email: customerservice@yaesu.com
Web: http://yaesu.com/
