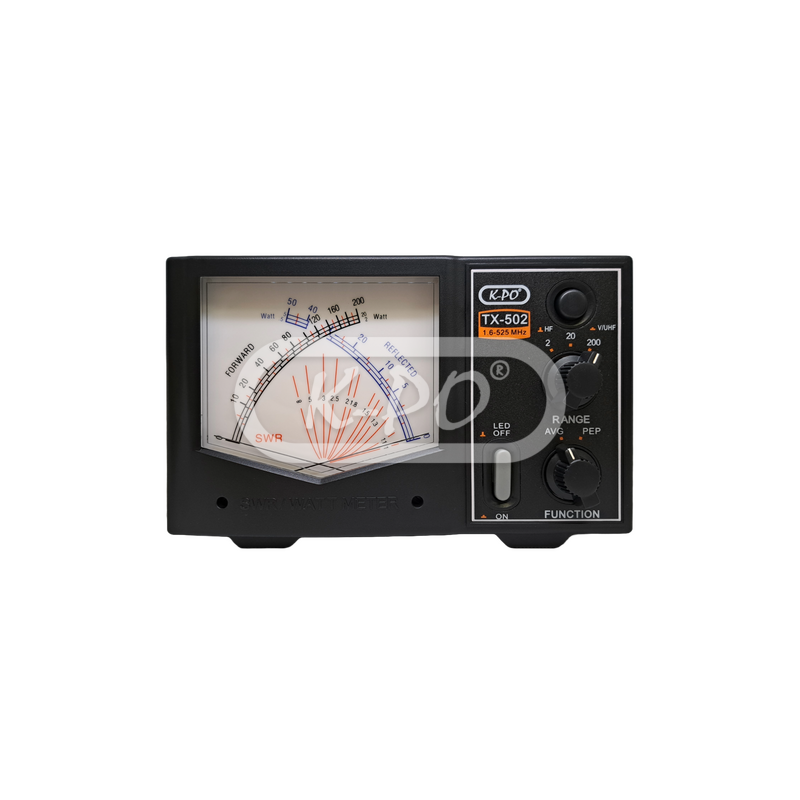

K-PO TX-502N SWR & Power Meter 1.6-200, 125-525MHz 200W

The K-PO TX-502N is a highly accurate SWR and power cross-needle meter for the 1.6-200 & 125-525 MHz frequency range.

The large backlit display makes it easy to read Forward Power, Reflected Power and SWR all at once.

The meter features an AVG/PEP switch to select between average power (AVG) and Peak Envelope Power (PEP), which is especially useful for SSB and AM transmissions.

The K-PO TX-502N supports up to 200 Watt of peak power (short time), ensuring reliable performance.

Made by Nissei, Taiwan.

Frequency range 1.6-200 & 125-525 MHz
Measuring ranges 2/20/200 W
Accuracy +/- 10%
Minimum power for measurement 1 W
Measuring range for standing wave 1.0 - infinity
Pass-through damping less than 0.10 dB
Connection SO-239 (1.6-200MHz) N female (125-525MHz)
Size 184x118x131 mm
Weight 900 grams
