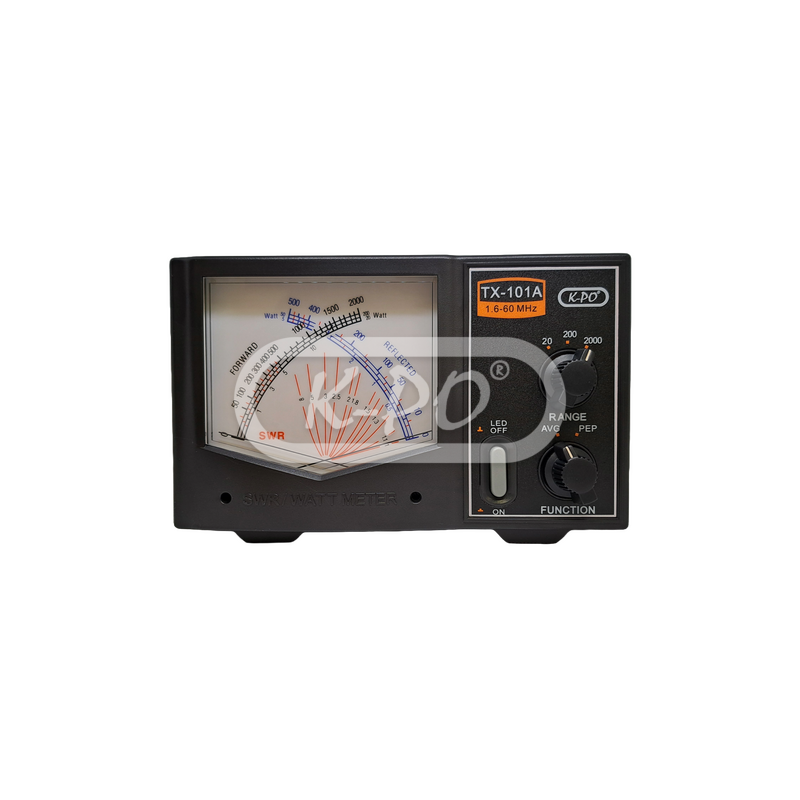

K-PO TX-101A SWR & Power Meter 1.8-60MHz

The K-PO TX-101A is a highly accurate SWR and power cross-needle meter for the 1.6 – 60 MHz frequency range.
The large backlit display makes it easy to read Forward Power, Reflected Power and SWR all at once.

The meter features an AVG/PEP switch to select between average power (AVG) and Peak Envelope Power (PEP), which is especially useful for SSB and AM transmissions.
In PEP mode, the meter uses an active circuit to accurately capture real-time peak power levels, making it ideal for fine-tuning your signal during voice modulation.

The K-PO TX-101A supports up to 2 kW of peak power (short time), ensuring reliable performance even with high-power setups.

Made by Nissei, Taiwan.

Frequency range 1.8 - 60 MHz
Measuring ranges 20/200/2000 W
Accuracy +/- 10%
Minimum power for measurement 1 W
Measuring range for standing wave 1.0 - infinity
Pass-through damping less than 0.1 dB
Connection SO-239
Size 184x118x131 mm
Weight 900 grams
