WIO TRACKER L1 PRO Meshtastic Node with display

WIO TRACKER L1

PRO Meshtastic Node with display, battery, and GPS

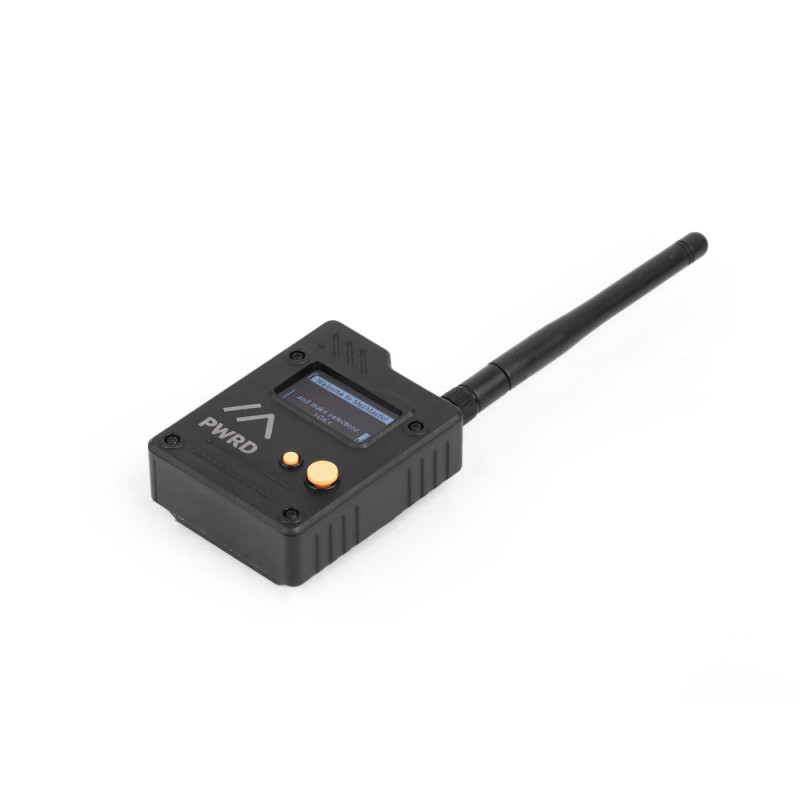

The Wio Tracker L1 Pro is a fully assembled, battery-powered LoRa-GPS node with preinstalled Meshtastic firmware. It is ready to use out of the box and is ideal for off-grid communication, position tracking, and building energy-efficient mesh networks.

At its core runs a Nordic nRF52840 microcontroller paired with a LoRa radio module in the 862–930 MHz band and a L76K multi-GNSS receiver for precise location (GPS, BeiDou, GLONASS, QZSS). A 1.3-inch OLED display shows status and positioning data clearly; a built-in joystick enables direct control.

The Wio Tracker L1 Pro includes a rechargeable Li-ion battery and supports multiple power options: charging via USB-C, battery power, or connection to a solar panel. Combined with its low-power hardware and LoRa radio, the tracker is ideal for long-term, power-independent deployments.

Thanks to its rugged 3D-printed housing, the Wio Tracker L1 Pro is designed for field use. Open interfaces such as the Grove port, solderable PTH headers and an SWD debug interface allow for expansion and integration into custom IoT or sensor applications.

Highlights:
Fully integrated Meshtastic LoRa-GPS node, ready to use
LoRa radio in the 862–930 MHz range for energy-efficient long-range communication
L76K multi-GNSS module for precise tracking (GPS, BeiDou, GLONASS, QZSS)
1.3-inch OLED display and joystick for direct use without PC or smartphone
Built-in rechargeable battery with USB-C charging and solar power support
Durable 3D-printed housing optimized for mobile outdoor use
Preinstalled Meshtastic firmware — no additional programming required
Expandable via Grove port, PTH headers and SWD debug interface

Technical specifications (overview):
Processor: Nordic nRF52840 ARM Cortex-M4F, up to 64 MHz
Memory: 1 MB Flash, 256 kB RAM
Radio: LoRa based on Wio-SX1262, frequency 862–930 MHz
Bluetooth: Bluetooth 5.0
GNSS: Quectel L76K (GPS, BeiDou, GLONASS, QZSS)
Display: 1.3-inch OLED, 128 × 64 px
Power supply:built-in Li-ion battery, USB-C 5 V / 1 A, solar input 5 V / 1 A, battery input 3.7 V
Housing: 3D-printed plastic, built for mobile use
Interfaces: Grove port, PTH headers, SWD debug interface

Typical use cases:
Off-grid messaging and emergency communication via Meshtastic mesh networks
GPS tracking of people, equipment or vehicles in remote areas
Building energy-efficient sensor and IoT nodes with LoRa backbone
Outdoor events, hiking and expedition teams where no mobile network is available

Included in the Box:
Wio Tracker L1 Board with 1.3 inch OLED Display, 3D-Printed Enclosure and battery
LoRa Antenna
