Peak Atlas DCA75 Pro Advanced Semiconductor Analyser

Component Support

Bipolar transistors (NPN/PNP inc Silicon/Germanium)
Darlington transistors (NPN/PNP)
Enhancement mode MOSFETs (N-Ch and P-Ch)
Depletion mode MOSFETs (N-Ch and P-Ch)
Junction FETs (N-Ch and P-Ch). Both symmetrical and asymmetrical types.
Enhancement IGBTs (N-Ch and P-Ch).
Diodes and diode networks (2 and 3 lead types).
Zener diodes (up to about 9V).
Voltage regulators (up to about 8V).
LEDs and bi-colour LEDs (2 lead and 3 lead types).
Low power sensitive Triacs and Thyristors (<10mA trigger and hold)

Measurements

BJT current gain (hFE).
BJT base emitter voltage (Vbe).
BJT collector leakage current.
MOSFET on and off gate threshold voltages.
MOSFET transconductance.
JFET pinch-off voltage.
JFET transconductance.
JFET IDSS (drain current for Vgs=0)
IGBT on and off gate threshold voltages.
IGBT transconductance.
Voltage regulator output voltage.
Voltage regulator quiescent current consumption.
Voltage regulator drop-out voltage.
Zener voltage.
Diode forward voltage drop.

Includes:

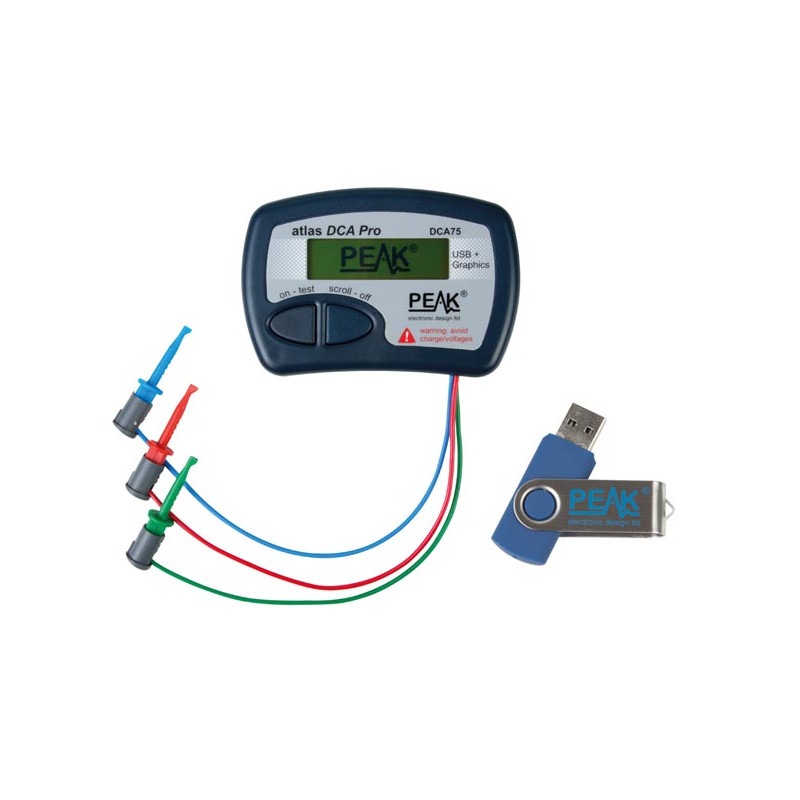

DCA75 Semiconductor Component Analyser.
PC software on a USB Flash Drive for Windows 10, 8, 7, XP.
Micro USB cable.
Fitted universal premium hook probes.
AAA Alkaline battery.
