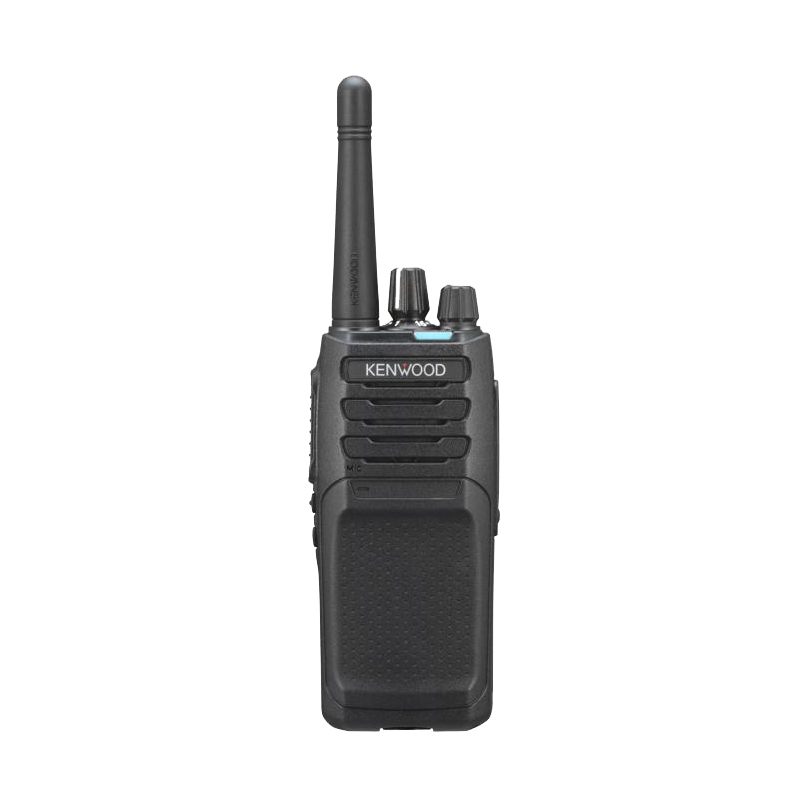

Kenwood NX-1300AEPACK UHF 400-470 MHz 5W

Kenwood NX‑1300AE is an analog radio (upgradeable with DMR/NXDN)

Specifications
Frequency Range: 400–470 MHz
Number of Channels: 64
Number of Zones: 4
Channel Frequency Spread: 38 MHz
Channel Spacing – Analog – Wide/Narrow: 25 kHz / 12.5 kHz

Battery Life
With KNB‑84L: approx. 11.0 h
With KNB‑45L: approx. 11.0 h
With KNB‑53N: approx. 7.0 h
With KNB‑69L: approx. 14.0 h
– 5-5-90 –

Battery Voltage: 7.5 V DC ± 20%
Frequency Stability: ± 0.5 ppm (−30 °C to +60 °C)
Operating Temperature Range: −30 °C to +60 °C

Dimensions
With KNB‑84L: 54.0 × 123.0 × 33.5 mm
With KNB‑45L: 54.0 × 123.0 × 33.5 mm
With KNB‑53N: 54.0 × 123.0 × 33.5 mm
With KNB‑69L: 54.0 × 123.0 × 37.5 mm
Radio only: 54.0 × 123.0 × 33.5 mm
– Projections not included –

Weight (net)
With KNB‑84L: 295 g
With KNB‑45L: 295 g
With KNB‑53N: 365 g
With KNB‑69L: 310 g
Radio only: 175 g

Receiver Specifications
Audio Output: 1 W (internal)
Intermodulation: 70 dB

Selectivity (Analog):
25 kHz: 74 dB
12.5 kHz: 67 dB

Sensitivity – EIA 12 dB SINAD:
0.26 µV at 25 kHz
0.22 µV at 12.5 kHz

Sensitivity – EN 20 dB SINAD:
0.32 µV at 25 kHz
0.33 µV at 12.5 kHz

Spurious Response Rejection (Analog): 70 dB

Transmitter Specifications
RF Power Output: 5 W / 4 W / 2.5 W / 1 W
Audio Distortion: 2%

FM Hum & Noise:
Analog @ 25 kHz: 45 dB
Analog @ 12.5 kHz: 40 dB

Spurious Emissions:
Below 1 GHz: ≤ −36 dBm
1 GHz – 4 GHz: ≤ −30 dBm

AEPack includes:

Belt clip (KBH‑10M)
2000 mAh Li‑Ion battery (KNB‑45LM)
Desktop rapid charger for Li‑Ion (KSC‑35SE)
Antenna (KRA‑27 M3) 400–450 MHz
