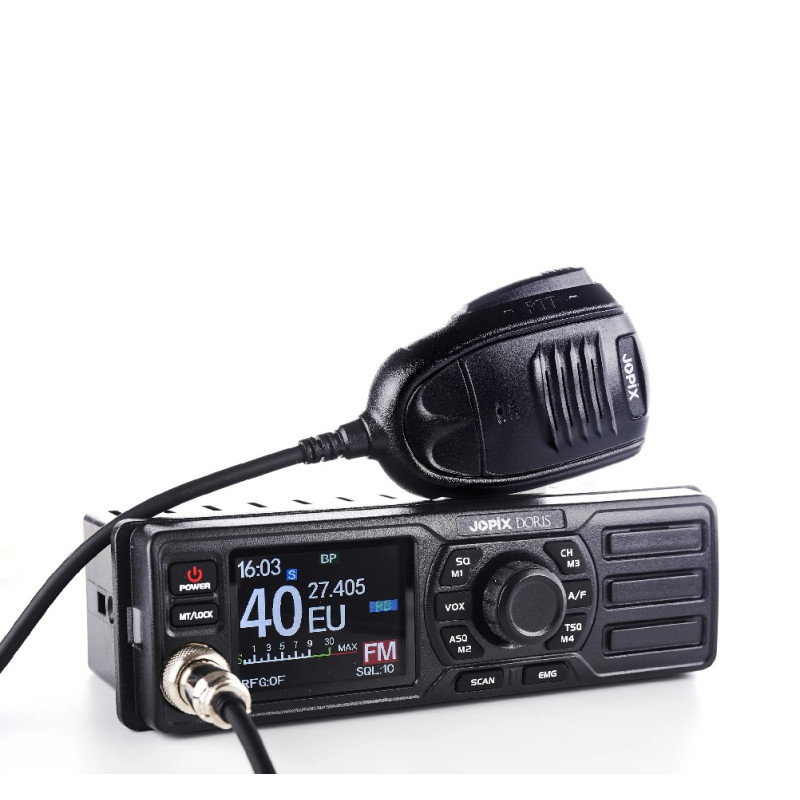

Jopix Doris 27Mhz 40 Channel AM/FM

A versatile CB radio, suitable to mount on any surface or in a DIN compartment.

Features:

12/24V power supply capability
With all the accessories included in the package, you can hang it on the windscreen or place it on the dashboard
Multi-band, both FM/AM, therefore suitable to communicate beyond national borders, adapting to European frequencies
Large TFT colour display with easy to read messages
Packed with functions PA
Dual Watch (to constantly monitor 2 channels)
Roger Beep
CTCSS/DCS function
5K setting
Scan range setting
Noise reduction function
Time out timer setting
VOX function

General Specifications

Frequency Range: 26.565-27.99125MHz
Frequency Tolerance: ±5.0ppm
Input Voltage: 12/24V
Frequency Control: PLL Synthesizer
Operating Temperature Range: -20℃ TO + 55℃
Current Drain: Transmit: 3A MAX, Receive: Squelched 0.3A, VOL Max: 0.8A

Transmitter Specifications:

Power Output: 4 Watts FM/AM
Transmission Interference: inferior to 4nW(-54dBm)
Frequency Response: 300-3000Hz
Modulated Signal Distortion: inferior to 5%
Output Impedance: 50 Ohms

Receiver Specifications:

Sensitivity: Less than 1uV for 10dB(S+N)/N
Image Rejection: 70dB
Adjacent Channel Rejection: 60dB
IF Frequencies: 1st 10.695MHz, 2nd 455KHz
Automatic Gain Control(AGC): Less than 10dB change in audio, Output for inputs from 10 to 50000uV
Squelch: less than 1uV
Audio Output Power: 1Watts
Frequency Response: 300-3000Hz
