Cable Hyperflex 13 (12,7mm)

Cable Hyperflex 13

Hyperflex 13 from Messi & Paoloni

High quality cable with a center conductor made of more and much finer cores than other cables.
This makes the cable more flexible and has a slightly lower attenuation at higher frequencies.

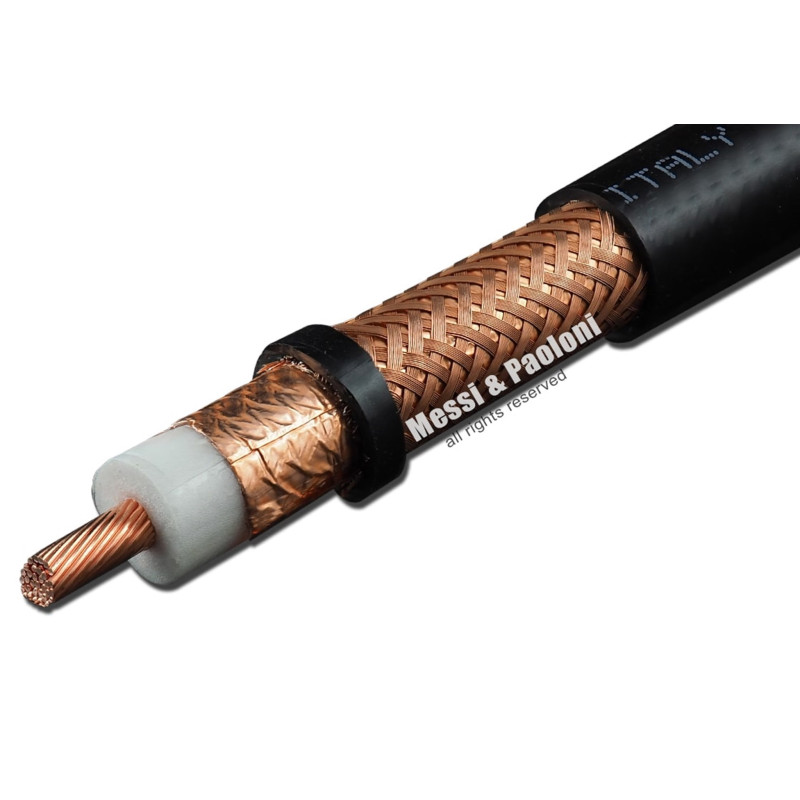

The braided central conductor has a diameter of approx. 4 mm and is constructed of 37 pieces of annealed copper of high purity (99.99%).
Other cables with a similar diameter usually only use 19 cords.

Hyperflex 13 is very well suited for very high frequency applications such as Wifi, LTE and others.

.

Technical Data:

Impedans: 50ohm
Diameter: 12.7mm

Demping: at 100m

28MHz   1.46dB
50MHz         1.93dB
144MHz       3.60dB
430MHz       6.41dB
1296MHz   11.70dB
2400MHz   16.68dB
5000MHz   25.68db
6000MHz   28.71dB

Wheigt (100m) 17.4Kg

Note! Complete information on the data sheet attached.
