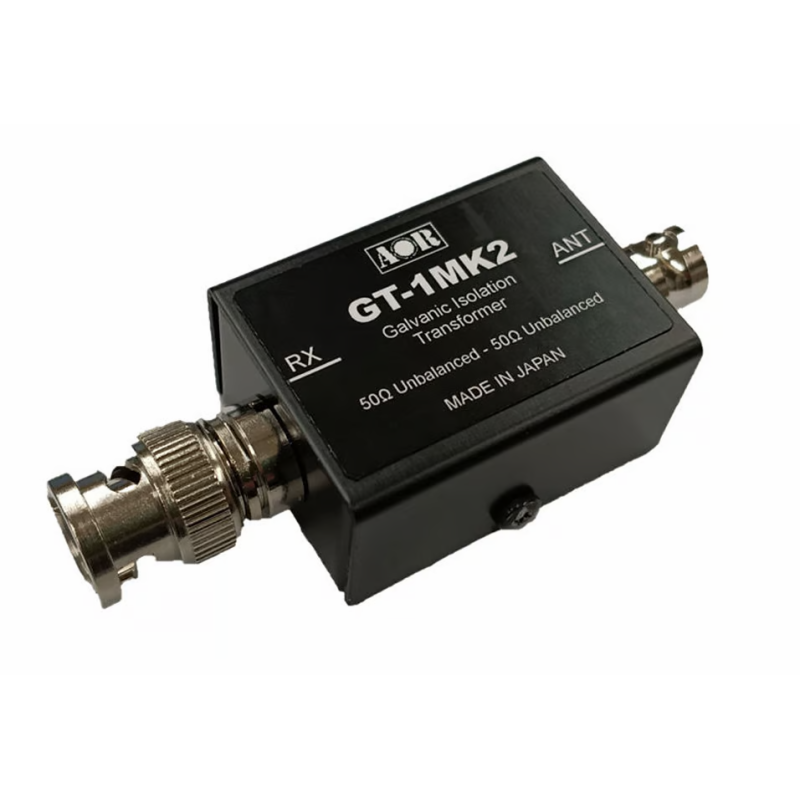

AOR GT-1 MK2 Galvanic isolation transformer

The GT1-MK2 is an isolation transformer that reduces locally generated noise when installed between an antenna and a receiver. By breaking the ground loop between the antenna system and the receiver, it can reduce interference from switching power supplies, computers, and electrical devices. It also helps protect the receiver from electrostatic discharge on the antenna line and provides wideband coverage from 100 kHz to 400 MHz, including longwave, shortwave and airband.

Technical Specifications:

Product: GT1-MK2 Galvanic Isolation Transformer
Frequency Coverage: 100 KHz to 400 MHz
Insertion Loss: Upto 3dB
Input/Output Impedance: 50 Ohms, Unbalanced
Connector Type: BNC Female (Antenna Side), BNC Male (Receiver Side)
Box Size: 40 X 30 X 20mm
Weight: 38 g

Features:

Reduces or suppresses ground-loop-induced noise.
Especially useful in PC-controlled and SDR receiver environments.
Strong performance in the LW, MW, SW ranges and broad usable coverage up to military airband.
Helps protect the receiver from electrostatic discharge on the antenna line.
Wide frequency coverage from 100 kHz to 400 MHz.

NOTE: Receive only - Do not transmit through the GT1-MK2
