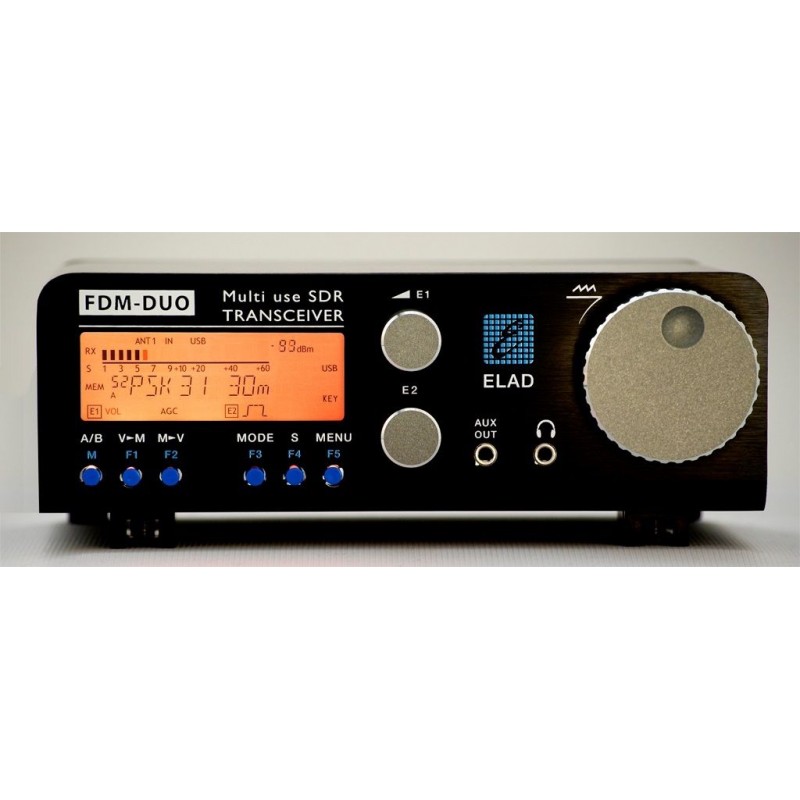

Elad FDM-DUO SDR

An SDR transmitter from Elad with 5W that also serve as a standalone without a computer!

The small transceiver is equipped with the latest SDR technology: A fast analog-digital converter samples the received HF directly to digital signals and a downstream DSP module allows filtration and processing.
Another ARM processor handles the signals from the controller.

With Elad FDM-DUO you have the ability to use the standalone TRX without a computer as well, making this transceiver a perfect friend to have with you even on vacation.

When FDM-DUO is connected to a computer, you have a very modern SDR receiver and transmitter with functions that are usually only available in very large radios.

More info & programs can be downloaded here

Frequency RX 9 kHz - 52 MHz
Frevens TX amateur radio bands 160 to 6m
Power output 5W or 0 dBm HF-Output socket
Outlet for antenna 2pcs PL (UHF) (RX/TX or divided between RX/TX)
Exciter Output 0dBm, 100 kHz - 54 MHz
Frequency Oscillator TCXO 10MHz
Stand-alone mode of traffic (without PC) CW, USB, LSB, AM, FM
Spectrum bandwidth 192, 384, 1536, 3072, 6144 kHz
CAT USB interface with FTDI controls
Weight 1200gr
Size 180 × 155 × 70 mm
