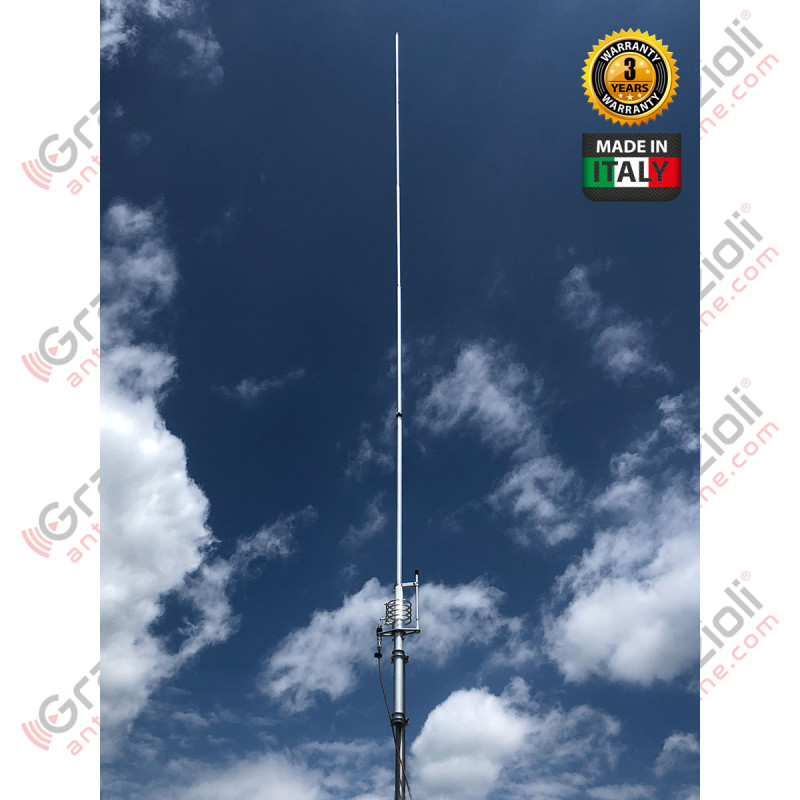

Grazioli HW10V 1/2 26-30 MHz

Reference HW10V

Brand Grazioli antenne

Rating

Write a review

kr2,495.00

Tax included

Quantity

Out-of-Stock

Description

Grazioli HW10V 1/2 λ vertical antenna fed at the base, tunable from 26 to 30 MHz by adjusting the whip length and fine-tuning at the base by means of a PTFE insulated high voltage variable capacitor (40 kV)

Extremely robust construction in AW6063-T66 aluminum alloy and CNC machined parts from solid stock.

Supplied with high-quality 304 and 316 stainless steel fasteners for long rust-free operating life.

High input power, up to 3 kW continuous All-mode.

Detailed assembly manual and serial number that identifies the production batch and construction data.

Frequency Range		Tunable from 26 to 30 MHz (with Graph)
Antenna Type		1/2 λ End Fed Vertical Dipole
Gain		0 dBd – 2,15 dBi
Bandwidth @SWR 2:1		≥ 1.7MHz @ 28MHz
Wind load @ 130Km/h		19Kgf
Max. Input Power		3000 Watt
Input connector		50Ω UHF female PTFE insulator, gold plated pin
Antenna Height		5.38m a 26MHz
Radials length		No
Antenna Net weight		3.1 kg
Mounting mast bracket		ø 40-54 mm
