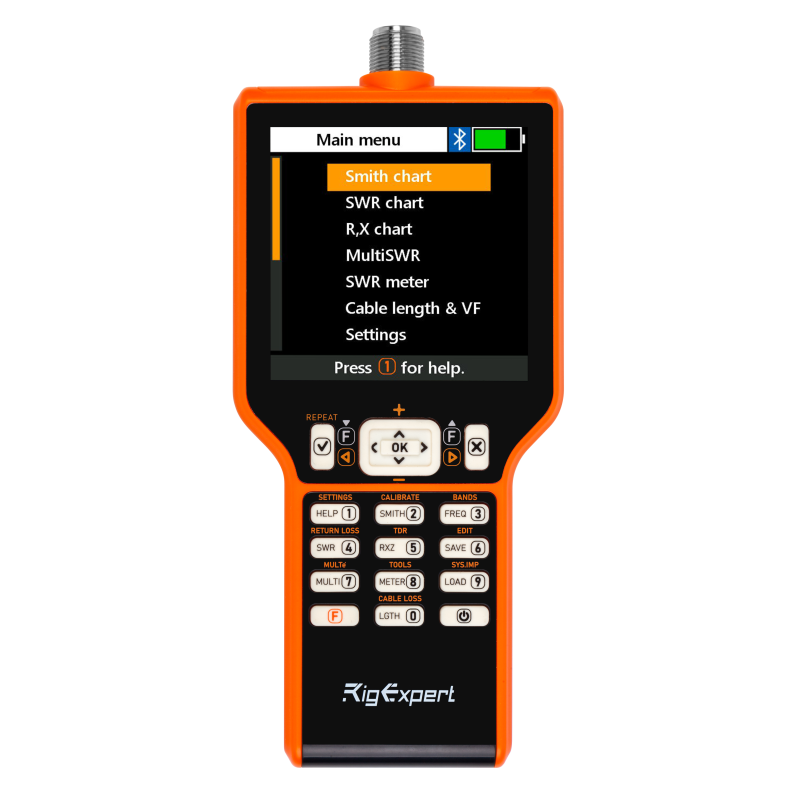

RigExpert Match - Antenna Analyzer

The new, upgradeable antenna and cable analyzer, MATCH, will revolutionize the field, with groundbreaking technology designed to grow with your needs.
Start with the powerful Base model, covering 0.1-70 MHz, and upgrade as your requirements expand with the ADVANCE or full RFE (Radio Field Engineer) license:

ADVANCE license: Extends coverage to 0.1-230 MHz and adds additional features (product code 29-0801).
RFE license: Extends coverage to 0.1-500 MHz, with additional advanced features. (product code 29-0802).

You can purchase the Base model and upgrade in stages first to the ADVANCE license and later to the RFE license. Alternatively, you can upgrade directly from the Base model to the full RFE license in one step.

MATCH is the perfect tool for hobbyists and professionals alike to analyze and fine-tune antennas and cables with precision. User-friendly, versatile, and ready for the future.

Frequency range
0.1 to 70 MHz and can be upgraded to 230 MHz (Advanced license) and 500 MHz (RFE license)

Operating modes
R, X chart
Return loss chart
Smith chart (Advanced, RFE license)
SWR at single or multiple frequencies
SWR chart
SWR, return loss, R, X, Z, L, C at single frequency
Time Domain Reflectometery (TDR) chart (RFE license)

Tools
Cable loss and characteristic impedance measurement (Advanced, RFE license)
Length & velocity factor (Advanced, RFE license)
OSL calibration (Advanced, RFE license)
Self test
Stub tuner (Advanced, RFE license)
User OSL: 10 profiles available (RFE license)

Factory OSL
Yes

Display
480x480 color TFT 4.0” LCD

Built-in Helper
Yes, with one-touch

Output power
-10 dBm (at 50 Ohm load)

Output connector
N-type

Battery (power)
One Li-Ion battery ICR18650, 2600mAh

Operating time
2 hours 40 minutes (continuous measurements)

Operating temperature
-10...60 °C (14...140 °F)

PC/mobile interface
USB type-C

Languages
English
French
German
Italian
Portuguese
Spanish
Ukrainian

Dimensions
93 × 207 × 37 mm (3.7 × 8.1 × 1.5 in)

Weight
341 g (12 oz)
