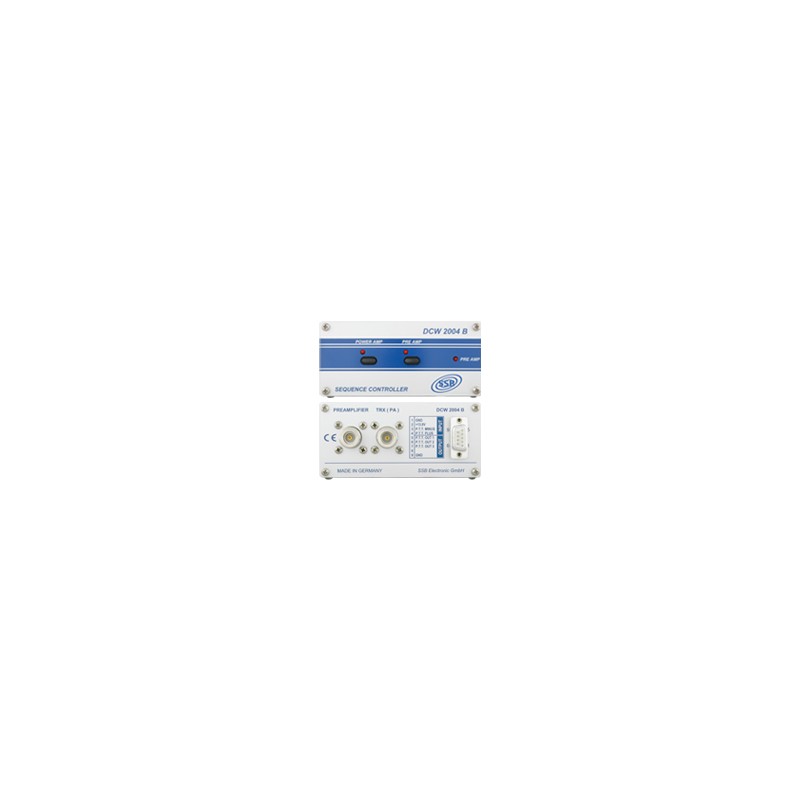

SSB Electronics DCW 2004 B

The sequential operation of the DCW 2004 B avoids reliably damage to the preamlifier
that may be caused by HF-spikes during switching. It offers 3 switching outputs in total,
which have ascending delay times. So not only linear amplifiers but other devices, like
transverters, can be switched on with defined times.

The DCW 2004 B is designed for the amplifiers MHP - R and SP series. The PTT switching
input of the DCW 2004 B accepts a circuit against ground or against + 5 ... 12 V.
The preamlifier and a linear amplifier (if used) can be switched on or off as required.

The HF-section of the DCW 2004 B offers a very low inseration loss and a high shielding
factor
