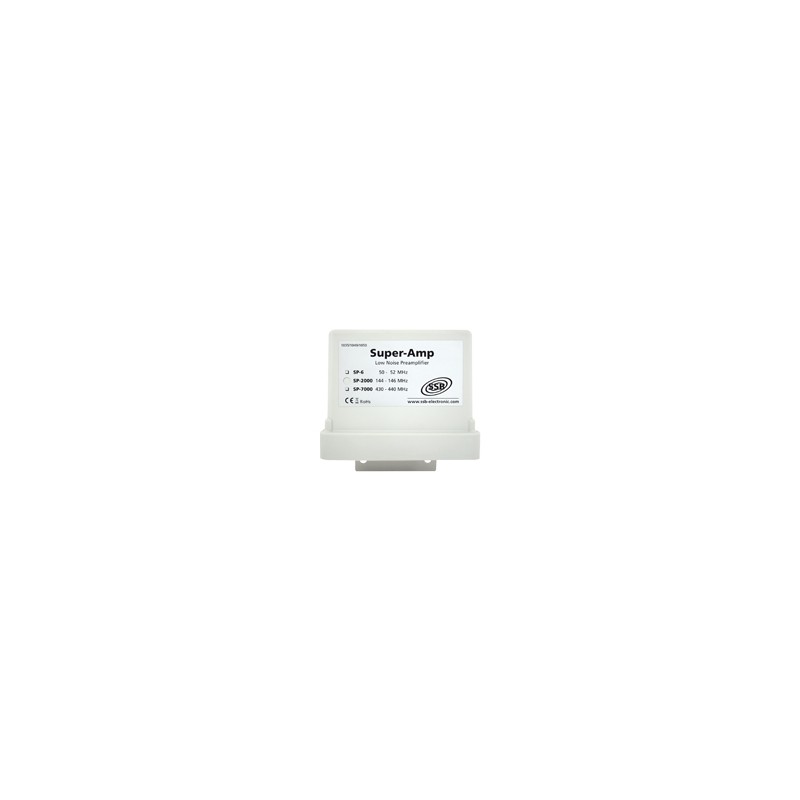

The Super-Amp series is a series of low-noise mast amplifiers for amateur radio bands 6 m, 2 m, 70 cm, 23 cm and 13 cm.
All models are equipped with
low-noise GaAs-FET with protection against HF through an effective protective circuit.

Super-Amp amplifiers can be used alternatively with a remote control or direct power supply of voltage.
When using amplifiers & effects above 100w, dcw 2004 should be used as a control.
This ensures a fast sequential TX/RX transition.
Frequency range 144-146 MHz
Power resistance 100 Watts with HF switching
Power resistance with DCW-2004 (optional) FM 500 Watt, SSB 750 Watt
Reinforcement 10-20 dB
Noise factor 0.9 dB
Drive voltage 13.5 Volt DC 250mA
Max Mast tube size 58mm
