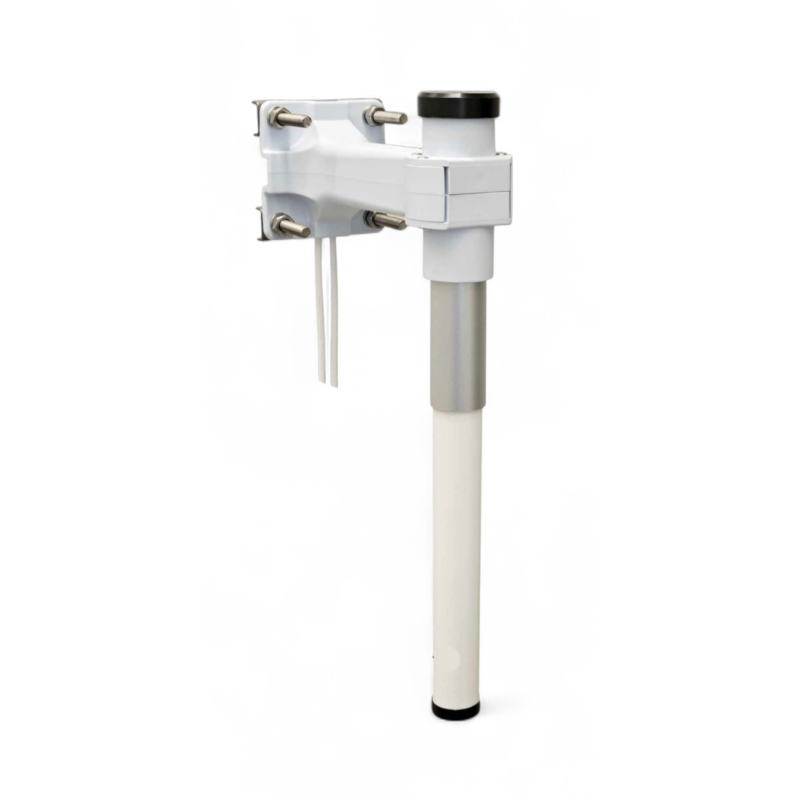

Sirio SO-5G & GPS Antenn

A wideband 5G antenna covering the frequency ranges 650–960 MHz, 1700–2700 MHz & 3300–4200 MHz (2G-GSM, 3G-UMTS, 4G-LTE, 5G, LTE 700,ISMT) and featuring a built-in GPS (GPS, GLONASS, QZSS, Galileo, L1) antenna.

The antenna can be mounted on a mast (35–60 mm) or on a wall.

Typ cellular: Wide band dipol
Typ GPS: Ceramic chip
Radiation cellular: Omnidirectional
Radiation GPS: Hemispherical
Polarization cellular: linear vertical
Polarization GPS: RHCP
Frequency cellular: 650-960 MHz, 1700-2700 MHz & 3300-4200 MHz
Frequency GPS: 1575-1606 MHz (GPS/GLONASS/QZSS/Galileo/L1)
Gain Cellular: 2.1 dBi @ 698-960 MHz, 4-6 dBi @ 1700-2700 MHz, 6-8 dBi @ 3300-4000 MHz
Gain GPS: 3.6 dBi (Amplifier 28dB@ Vcc=2.8V)
Voltage GPS: 1.5-3.6v
Cable/vconnector: 2 x 5 m lowl loss with SMA male
Montering: Maströr 35-60 mm eller på vägg
Storlek: 370 x 200 x 60 mm
