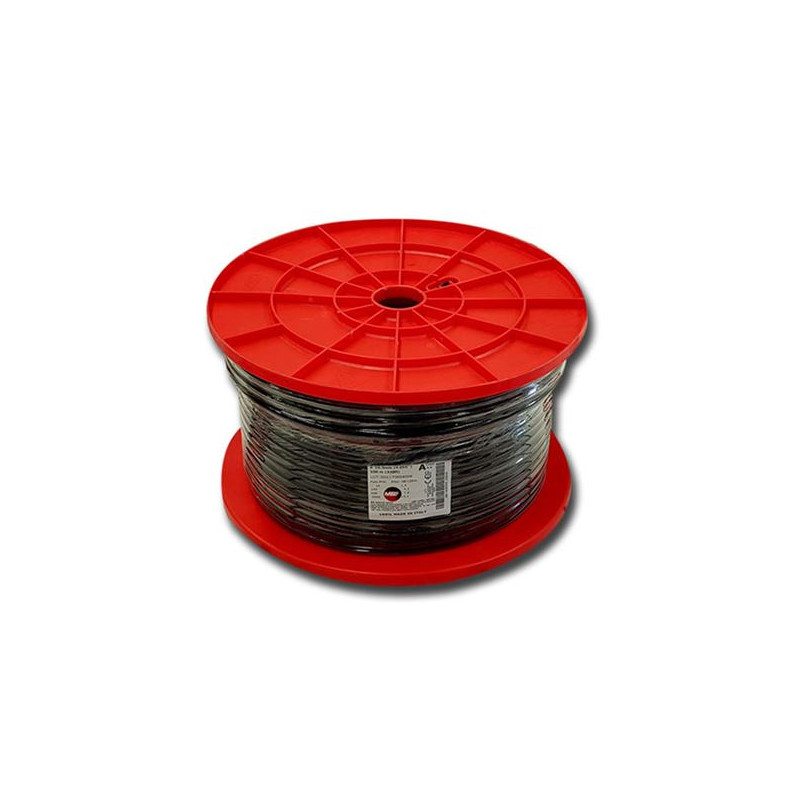

(This product is a 100m roll of cable without connectors)
.
Ultraflex 10 is a cable with an outer diameter similar to RG-213, but about half the attenuation.
Note! With a cable length of 40m, at 433MHz, you get 3 dB more than with RG-213.
This cable is adapted for high performance and for use up to the GHz range.
Design as AC7 Plus:
Twisted inner conductor of soft annealed pure copper, triple layered air foam dielectric, plastic coated copper foil, copper braid of 144 wires in 24 coils, outer jacket PVC.
.
Power endurance: 7.7 kW at 1.8 MHz and 2.8 kW at 144 MHz with 0.8 dB attenuation at 50m on 144MHz.
Impedance: 50ohm
Outer diameter: 10.3mm
Weight: 14Kg
Demping: at 100m lenght
1.8MHz 0.80dB
3.5MHz 1.00dB
14MHz 1.50dB
28MHz 2.00dB
50MHz 2.70dB
144MHz 4.70dB
430MHz 8.60dB
1296MHz 16.40dB
2400MHz 23.70dB
5000MHz 38.90db
6000MHz 44.50dB
Reference: 41-1228
Brand: Messi & Paoloni
Manufacurer:
Name: Messi & Paoloni srl.
Address: Via G. Conti 1, IT-60131 Ancona Italy
Phone: +39 071 2861527
Email: info@messi.it
Web: https://messi.it/en/home.htm
Certifiering: https://messi.it/en/company/certificates.htm
