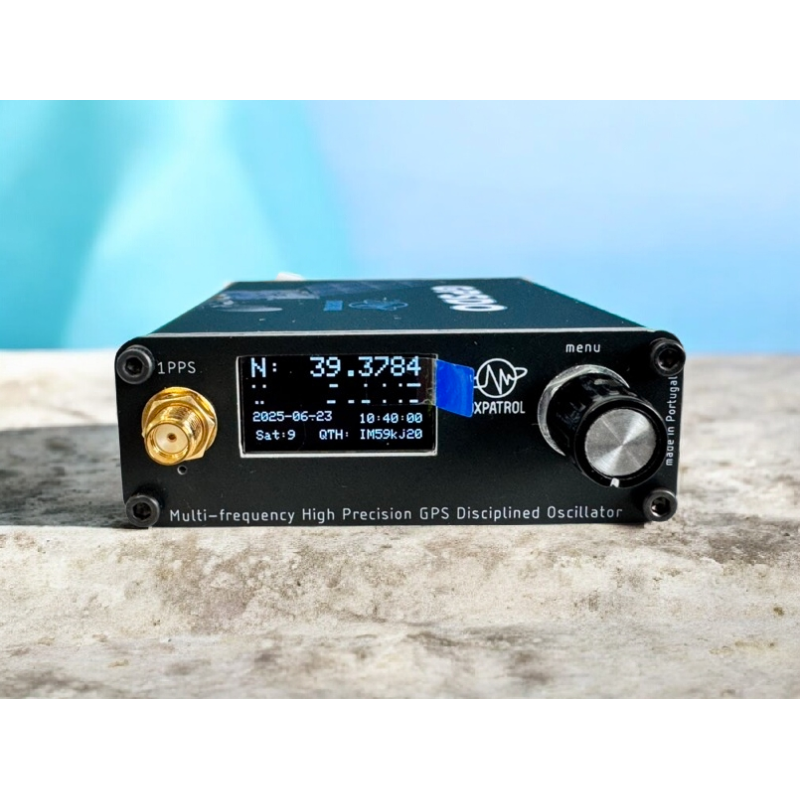

DxPatrol GPS V3 controlled oscillator 350kHz to 350Mhz

27-9901
Rating
kr1,916.00
Quantity
Out-of-Stock

Description

A GPSDO (Global Positioning System Disciplined Oscillator) is a precision oscillator whose frequency is disciplined by a GPS signal. These devices are used to generate extremely accurate time and frequency standards. Due to the continuous correction based on GPS signals, the frequency of the oscillator remains stable over time, which is crucial for many applications.

A typical GPSDO uses a high quality crystal oscillator (OCXO) or rubidium oscillator in combination with a GPS receiver.

The DXPatrol GPSDO V3 generates up to four programmable independent output frequencies LVCMOS 350kHz to 350Mhz.The internal GPS reference U-Blox 7N drives a 10Mhz CTI - OCXO 0.05ppb* Square wave Oscillator.

The high-contrast OLED display provides information on position, SAT status and time. The receiver supports the GPS, Glonass and Galileo systems.

If you need to synchronize your PC with a precise time reference with a source independent of the Internet, if you do not have access to the Internet or if you simply want to have a fast, accurate time server, you can connect your home PC to this GPSDO and have the highly precise time set by the GPS clock.

Professional, closed networks such as those used by security, secret service and military authorities benefit from this advantage. But also DX expeditions without Internet access, where the exact time on the PC is required for WSJT operation, remote stations with poor or no Internet access can thus obtain reliable and ultra-precise time information at any location.

You can access the GPSDO via a computer or smartphone. Use the camera on your cell phone and scan the QR code on the device display. Your Wi-Fi network will connect to the GPSDO and a service website will open automatically.

All you need for operation is a power supply cable with a 5.5/2.5 mm barrel connector. The supply voltage can be between 6 and 14 volts. In the first minute after switching on until “lock”, the current consumption is 350 mA and is then reduced to 270 mA.

• Wi-Fi connection AP or Client for  NTP or software Upgrade
• QR-code easy Wi-Fi connection
• Local GPS coordinates presentation
• NMEA info access in front USB connector
• Rotary Knob settings
• Wait / Lock / Delta* indication.
• GPS, Galileu, Glonass receiver
• 5 Outputs 350KHz to 350Mhz + 1PPS ( pulse per second )
• 4 LVCMOS independent outputs
• 1 PPS output
• Turn ON full lock time ~ 1 minutes
• Working Temperature range 0ºC to 75ºC
• Supply voltage 6V to 14V
• Current 350mA first minute, 270mA after lock
• Dimensions metal case : 84mm / 71mm / 25mm
